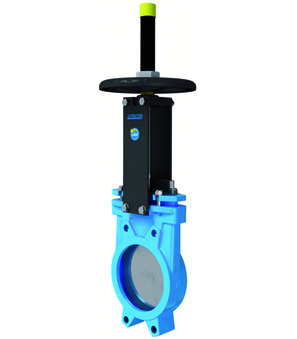

Knife gate valve with handwheel A1V2H2-5-300-B
Knife gate valve with handwheel Series A1V; Wafer type; Rising stem; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Medium temperature -5...+90°C; DN 300mm; Length 70mm; Pressure range 0...6bar
Intrastat No.: 84818061
Country of origin: Spain
Weight: 55.4 Kg
Short Itemnumber:A1V2H25300B
Country of origin: Spain
Weight: 55.4 Kg
Short Itemnumber:A1V2H25300B
Knife gate valve with handwheel Series A1V; Wafer type; Rising stem; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Medium temperature -5...+90°C; DN 300mm; Length 70mm; Pressure range 0...6bar
| dimension | |
|---|---|
| DN | 300 mm |
| Length | 70 mm |
| pressure | |
| Pressure range | 0...6 bar |
| characteristics | |
| Medium temperature | -5...+90 °C |
Data sheets, Instructions, 3D-files and Certificates...
In your language
ZIPData Sheets
1Data sheet_Knife gate valve_EN.pdf
Download
Assembly and Operating Instructions
1Assembly and operating instructions_Knife gate valve_EN.pdf
Download
Declarations of Conformity
1Declaration of conformity_Knife gate valve_EN.pdf
Download
CAD / 3D
1CADSTEP_A1V2H25300B.stp
Download
No spare parts are available for this product.
