Knife gate valve with handwheel Series A1V-PI Store

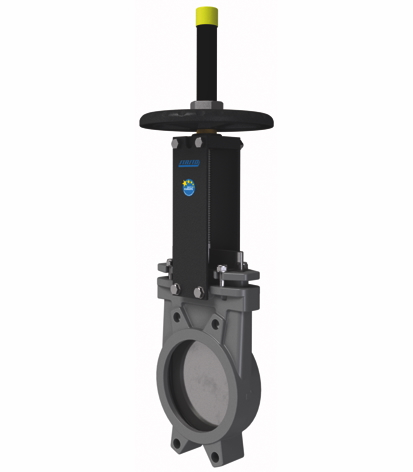

Knife gate valve with handwheel A1V2I2-5-80-PI

Name: Knife gate valve with handwheel A1V2I2-5-80-PI
Brand: STASTO
SKU: A1V2I2-5-80-PI
Price: 3456.3 RON
Availability: InStock

Knife gate valve with handwheel Series A1V-PI; Wafer type; Rising stem; Body 1.4408; Gate 1.4401; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Nominal flange pressure PN10; Unidirectional sealed; Medium temperature -5...+90°C; Prepared for 2 inductive switches MSU03, MSU04, MSU05; DN 80mm; Length 50mm; Pressure range 0...10bar

Intrastat No.: 84818063
Country of origin: Spain
Weight: 9.6 Kg
Short Itemnumber:A1V2I2580PI

knife gate valve with handwheel series A1V-PI; wafer type; rising stem; body AISI 316; gate AISI 316; soft sealed EPDM; packing PTFE-synthetic/EPDM; nominal flange pressure PN10; unidirectional sealed; medium temperature -5...+90°C; prepared for 2 inductive switches MSU03, MSU04, MSU05; DN 80mm; length 50mm; pressure range 0...10bar

3.456,30 lei 3456.3 RON 3.456,30 lei

DN
- 80 mm
Length
- 50 mm
Cable length
- -
Function
- -
Voltage
- -
Pressure range
- 0...10 bar
Switch design
- -
Medium temperature
- -5...+90 °C

This combination does not exist.

Availability:

Adaugă în coș

dimension
DN	80 mm
Length	50 mm
pressure
Pressure range	0...10 bar
characteristics
Medium temperature	-5...+90 °C

Data sheets, Instructions, 3D-files and Certificates...

In your language

ZIP

Data Sheets

Data sheet_Knife gate valve_EN.pdf
