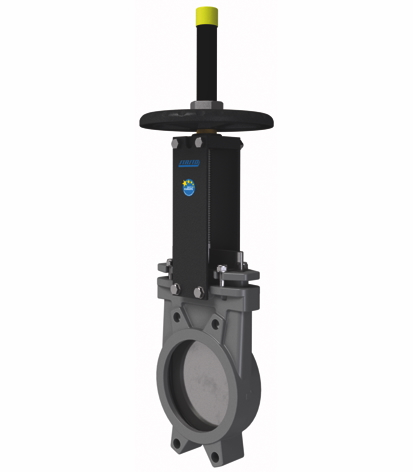

knife gate valve with handwheel series A1V-PI; wafer type; rising stem; housing AISI 316; gate AISI 316; soft sealed EPDM; packing PTFE-synthetic/EPDM; nominal flange pressure PN10; unidirectional sealed; medium temperature -5...+90°C; prepared for 2 inductive switches MSU03, MSU04, MSU05; DN 450mm; length 106mm; pressure range 0...5bar
Country of origin: Spain
Weight: 37.05 Kg
Short Itemnumber: A1V2I25450PI
knife gate valve with handwheel series A1V-PI; wafer type; rising stem; housing AISI 316; gate AISI 316; soft sealed EPDM; packing PTFE-synthetic/EPDM; nominal flange pressure PN10; unidirectional sealed; medium temperature -5...+90°C; prepared for 2 inductive switches MSU03, MSU04, MSU05; DN 450mm; length 106mm; pressure range 0...5bar
Technical specifications
| Pressure range | 0...5 bar |
|---|---|
| DN | 450 mm |
| Length | 106 mm |
| Medium temperature | -5...+90 °C |
| Pressure range | 0...5 bar |
| DN | 450 mm |
| Length | 106 mm |
| Medium temperature | -5...+90 °C |
A1V2I2-5-450-PI
