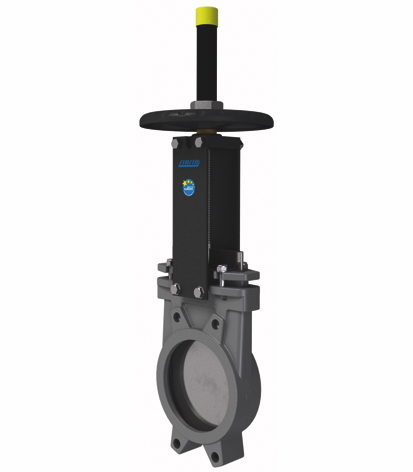

Knife gate valve with handwheel A1V2I2-5-125-PI
knife gate valve with handwheel series A1V-PI; wafer type; rising stem; housing AISI 316; gate AISI 316; soft sealed EPDM; packing PTFE-synthetic/EPDM; nominal flange pressure PN10; unidirectional sealed; medium temperature -5...+90°C; prepared for 2 inductive switches MSU03, MSU04, MSU05; DN 125mm; length 50mm; pressure range 0...10bar
Intrastat No.: 84818063
Country of origin: Spain
Weight: 9.6 Kg
Short Itemnumber:A1V2I25125PI
Country of origin: Spain
Weight: 9.6 Kg
Short Itemnumber:A1V2I25125PI
knife gate valve with handwheel series A1V-PI; wafer type; rising stem; housing AISI 316; gate AISI 316; soft sealed EPDM; packing PTFE-synthetic/EPDM; nominal flange pressure PN10; unidirectional sealed; medium temperature -5...+90°C; prepared for 2 inductive switches MSU03, MSU04, MSU05; DN 125mm; length 50mm; pressure range 0...10bar
| dimension | |
|---|---|
| DN | 125 mm |
| Length | 50 mm |
| pressure | |
| Pressure range | 0...10 bar |
| characteristics | |
| Medium temperature | -5...+90 °C |
Data sheets, Instructions, 3D-files and Certificates...
In your language
ZIPData Sheets
1Data sheet_Knife gate valve_EN.pdf
Download
Assembly and Operating Instructions
1Assembly and operating instructions_Knife gate valve_EN.pdf
Download
Declarations of Conformity
1Declaration of conformity_Knife gate valve_EN.pdf
Download
No spare parts are available for this product.
