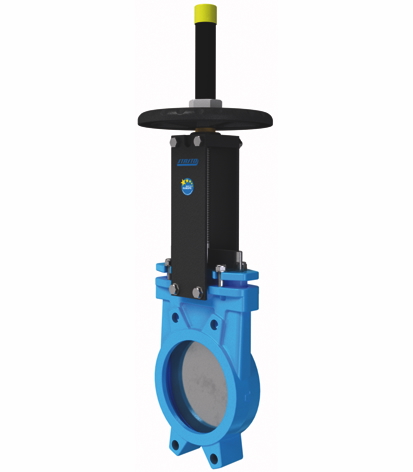

Knife gate valve with handwheel Series A1V-PIB; Wafer type; Rising stem; Body Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Medium temperature -5...+90°C; Prepared for 2 inductive switches MSU03, MSU04, MSU05; DN 125mm; Length 50mm; Pressure range 0...10bar
Country of origin: Spain
Weight: 9.2 Kg
Short Itemnumber: A1V2H25125PIB
knife gate valve with handwheel series A1V-PIB; wafer type; rising stem; body body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 304; soft sealed EPDM; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; unidirectional sealed; medium temperature -5...+90°C; prepared for 2 inductive switches MSU03, MSU04, MSU05; DN 125mm; length 50mm; pressure range 0...10bar
Technical specifications
| Pressure range | 0...10 bar |
|---|---|
| DN | 125 mm |
| Length | 50 mm |
| Medium temperature | -5...+90 °C |
| Pressure range | 0...10 bar |
| DN | 125 mm |
| Length | 50 mm |
| Medium temperature | -5...+90 °C |
A1V2H2-5-125-PIB
