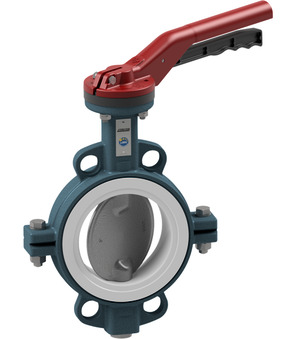

Butterfly valve with hand lever BUW4-080-DSTS-L

Price.

3.623,00 lei
Butterfly valve with hand lever Series BUW4-DSTS-L Store
  1. Products
  2. Armatures
  3. Valves, butterfly valves and gate valves - manually operated
  4. Butterfly valves
  5. Butterfly valve with hand lever Series BUW4-DSTS-L
  6. BUW4-080-DSTS-L
Butterfly valve with hand lever BUW4-080-DSTS-L
Butterfly valve with hand lever BUW4-065-DSTS-L
Butterfly valve with hand lever BUW4-065-DSTS-L
3.307,30 lei
3.307,30 lei
Butterfly valve with hand lever BUW4-100-DSTS-L
Butterfly valve with hand lever BUW4-100-DSTS-L
4.458,90 lei
4.458,90 lei

Butterfly valve with hand lever BUW4-080-DSTS-L

Butterfly valve with hand lever Series BUW4-DSTS-L; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/silicone; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 80mm; Length 46mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 4.75 Kg
Short Itemnumber:BUW4080DSTSL
https://www.stasto.ro/web/image/product.template/88189/image_1920?unique=b9bbba7

Butterfly valve with hand lever Series BUW4-DSTS-L; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/silicone; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 80mm; Length 46mm

3.623,00 lei 3623.0 RON 3.623,00 lei

Not Available For Sale

  • DN
  • Length
  • Pressure range

This combination does not exist.

Availability:
Contact Us
dimension
DN 80 mm
Length 46 mm
pressure
Pressure range 0...10 bar
