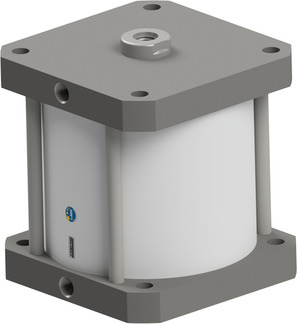

Short stroke magnetic cylinder Series SHDM; Double acting;; Pressure range 1...10bar; Piston rod with female thread; Diameter 50mm; Stroke 40mm; Piston rod thread M8; Connection G 1/8"; Push force at 6 bar 1178N
Country of origin: Italy
Weight: 100.0 Kg
Short Itemnumber: SHDM5040
short stroke magnetic cylinder series SHDM; double acting;; pressure range 1...10bar; piston rod with female thread; diameter 50mm; stroke 40mm; piston rod thread M8; connection G 1/8"; push force at 6 bar 1178N
Technical specifications
| Connection | G 1/8" |
|---|---|
| Pressure range | 1...10bar |
| Diameter | 50 mm |
| Stroke | 40 mm |
| Connection | G 1/8" |
| Pressure range | 1...10bar |
| Diameter | 50 mm |
| Stroke | 40 mm |
| Piston rod thread | M8 |
| Push force at 6 bar | 1178 N |
| Function | Double acting |
SHDM50-40
