Other materiales - A04

Flanged type; Material Ductile iron EN-GJS-500-7; Wedge EPDM rubberized; Nominal flange pressure PN10; Medium temperature -20...+70°C; Pressure range 0...10bar

Flanged type; Material Ductile iron EN-GJS-500-7; Gate Ductile iron EN-GJS-500-7; Seal Bronze; Packing EPDM; Nominal flange pressure PN10; Medium temperature -10...+70°C; Pressure range 0...10bar

Flanged type; Rising stem; Metal sealing-TRIM8; Packing Graphite; Nominal flange pressure ANSI300; Medium temperature -29…+425 °C

Body Bronze; Stem seal EPDM; Medium temperature 0...+125°C; Pressure range 0...16bar

PN16; Body Cast iron EN-GJL-250; Seat, Cone, Stem Stainless steel 1.4021; Handwheel Steel; Packing gland Graphite; Back seal; Metal sealing; Rising stem; Body Painted RAL5013 (Cobalt blue) Thickness 40µm; Medium temperature -10...+300°C; Pressure range 0...16bar; ATEX-design

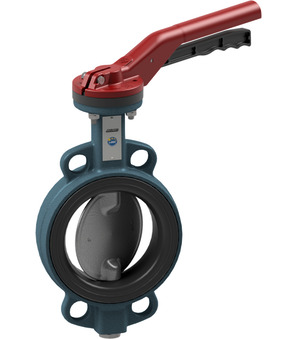

Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C

Wafer type; Length According to EN558−1R20; For abrasive medias (e.g. sand, cement, etc.); Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner Carboxylated NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+100°C; Pressure range 0...6bar

Suitable for Butterfly valves Series BUW4/BULD-PTFE

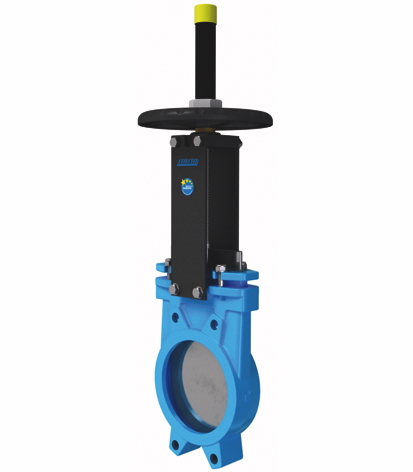

Wafer type; Rising stem; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Metal sealing; Packing PTFE-Synthetic; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Medium temperature -10...+270 °C; Prepared for 2 inductive limit switches M18

Wafer type; Rising stem; Body 1.4408; Gate 1.4401; Metal sealing; Packing PTFE; Nominal flange pressure PN10; Unidirectional sealed; Medium temperature -30...+200°C

Lug type; DVGW-gas-approved; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+60°C

Lug type; DVGW-gas-approved;Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner NBR; Medium temperature -10...+60°C

Suitable for Knife gate valve Series A

Wafer type; Rising stem; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4401; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Medium temperature -5...+90°C

Body Brass; Stem seal PTFE; Medium temperature -20...+60°C; Free of oil and grease for oxygen

ATEX II 2 G/D Ex h X; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Medium temperature -10...+200°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

; Lug type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Medium temperature -10...+425°C

; Body Cast iron; Protection class IP67; ATEX Area 1/21

; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C

Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Medium temperature -10…+130°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

Body Nickel plated brass; Knurled screw Fibre-glass-reinforced polyamide; Drain hole; Medium temperature Max. +90°C; Pressure range 0...10bar

; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4401; Liner NBR; Medium temperature -10...+100°C

; Lug type; Length According to EN558−1R20; Body; Disc And Shaft 1.4408; Liner NBR; Medium temperature -10...+100°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

Wafer type; Rising stem; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed FKM; Packing PTFE-Synthetic/FKM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Medium temperature 0...+120°C

Wafer type; Rising stem; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed FKM; Packing PTFE-Synthetic/FKM; Nominal flange pressure PN10; Unidirectional sealed; Medium temperature 0...+120°C

Lug type; Rising stem; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Nominal flange pressure PN10; Unidirectional sealed; Medium temperature 0...+90°C

Wafer type; DVGW-gas-approved; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+60°C; Pressure range 0...16bar; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

; PN40; Body 1.4408; Seat, Cone, Stem Stainless steel 1.4401; Handwheel Steel; Packing gland Graphite; Back seal; Metal sealing; Non rising stem; Medium temperature -10..+400°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness

Body Stainless steel 1.4408; Seal PTFE; Handwheel Aluminum; Stem seal PTFE; Medium temperature -20...+150°C; Pressure range 0...16bar; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness

Body Stainless steel 1.4408; Seal PTFE; Handwheel Aluminum; Stem seal PTFE; Medium temperature -20...+150°C; Pressure range 0...16bar

Flanged type PN16; Material Rubber EPDM, Flange Zinc plated steel; Temperature range -10...+115°C

; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc Aluminium-bronze; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C

Body Brass; Stem seal NBR; Medium temperature -30...+110°C
