Ball valves - pneumatically operated

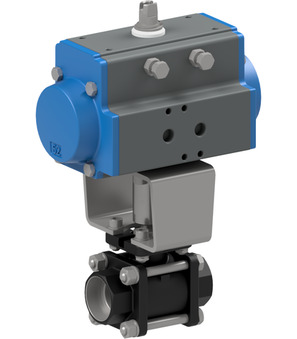

Ball valve with pneumatic actuator Series BAC5

Socket weld ends; Body Steel; Ball 1.4301; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C

Data sheets, CAD files and further documents are available with the respective variant.

Other series

Ball valve with pneumatic actuator Series BAB1

Ball valve with pneumatic actuator Series BAL1, BAT1

Ball valve with pneumatic actuator Series BAC1

Ball valve with pneumatic actuator Series BAC4

Ball valve with pneumatic actuator Series BAC5

Ball valve with pneumatic actuator Series BAB1

Ball valve with pneumatic actuator Series BAC1

Ball valve with pneumatic actuator Series BAC4

Ball valve with pneumatic actuator Series BAC5

Ball valve with pneumatic actuator Series BA541, BA542

Choose a variant

70 Articles

All prices exclude tax.

Grundversion

					Availability	Price	Quantity
BAC5-003-CITV-S0	10 mm	10 mm	57 mm	0...64 bar	See availability	1.854,40 lei	Quantity Details Documents — BAC5-003-CITV-S0
BAC5-004-CITV-S0	15 mm	15 mm	65 mm	0...64 bar	See availability	1.776,80 lei	Quantity Details Documents — BAC5-004-CITV-S0
BAC5-005-CITV-S0	20 mm	20 mm	76 mm	0...40 bar	See availability	2.098,60 lei	Quantity Details Documents — BAC5-005-CITV-S0
BAC5-006-CITV-S0	25 mm	25 mm	92 mm	0...40 bar	See availability	2.347,00 lei	Quantity Details Documents — BAC5-006-CITV-S0
BAC5-007-CITV-S0	32 mm	32 mm	106 mm	0...25 bar	See availability	2.515,80 lei	Quantity Details Documents — BAC5-007-CITV-S0
BAC5-008-CITV-S0	40 mm	40 mm	116 mm	0...25 bar	See availability	3.383,80 lei	Quantity Details Documents — BAC5-008-CITV-S0
BAC5-009-CITV-S0	50 mm	50 mm	136 mm	0...25 bar	See availability	4.160,60 lei	Quantity Details Documents — BAC5-009-CITV-S0
BAC5-010-CITV-S0	65 mm	65 mm	153 mm	0...16 bar	See availability	6.248,00 lei	Quantity Details Documents — BAC5-010-CITV-S0
BAC5-011-CITV-S0	80 mm	80 mm	180 mm	0...16 bar	See availability	7.537,80 lei	Quantity Details Documents — BAC5-011-CITV-S0
BAC5-012-CITV-S0	100 mm	100 mm	217 mm	0...16 bar	See availability	10.279,60 lei	Quantity Details Documents — BAC5-012-CITV-S0

Varianten

					Availability	Price	Quantity
BAC5-003-CITV-S0-ABS51-C001-22-C002-31-6 Specifications Pressure range 0...64 bar Design Standard	230V/50-60Hz	10 mm	10 mm	57 mm	See availability	2.604,60 lei	Quantity Details Documents — BAC5-003-CITV-S0-ABS51-C001-22-C002-31-6
BAC5-003-CITV-S0-ABS51-C001-22-C002-31-LV-1 Specifications Pressure range 0...64 bar Design With integrated LED-yellow and VDR	230V/50-60Hz	10 mm	10 mm	57 mm	See availability	2.631,60 lei	Quantity Details Documents — BAC5-003-CITV-S0-ABS51-C001-22-C002-31-LV-1
BAC5-003-CITV-S0-ABS51-C001-22-C002-31-LVCV20-1 Specifications Pressure range 0...64 bar Design With integrated LED-yellow, VDR and PVC-cable (2 m)	230V/50-60Hz	10 mm	10 mm	57 mm	See availability	2.678,00 lei	Quantity Details Documents — BAC5-003-CITV-S0-ABS51-C001-22-C002-31-LVCV20-1
BAC5-003-CITV-S0-ABS51-C001-03-C002-31-6 Specifications Pressure range 0...64 bar Design Standard	24VDC / 48V/50-60Hz	10 mm	10 mm	57 mm	See availability	2.604,60 lei	Quantity Details Documents — BAC5-003-CITV-S0-ABS51-C001-03-C002-31-6
BAC5-003-CITV-S0-ABS51-C001-03-C002-31-LV-2 Specifications Pressure range 0...64 bar Design With integrated LED-yellow and VDR	24VDC / 48V/50-60Hz	10 mm	10 mm	57 mm	See availability	2.632,10 lei	Quantity Details Documents — BAC5-003-CITV-S0-ABS51-C001-03-C002-31-LV-2
BAC5-003-CITV-S0-ABS51-C001-03-C002-31-LVCV20-2 Specifications Pressure range 0...64 bar Design With integrated LED-yellow, VDR and PVC-cable (2 m)	24VDC / 48V/50-60Hz	10 mm	10 mm	57 mm	See availability	2.672,40 lei	Quantity Details Documents — BAC5-003-CITV-S0-ABS51-C001-03-C002-31-LVCV20-2
BAC5-004-CITV-S0-ABS51-C001-22-C002-31-6 Specifications Pressure range 0...64 bar Design Standard	230V/50-60Hz	15 mm	15 mm	65 mm	See availability	2.527,00 lei	Quantity Details Documents — BAC5-004-CITV-S0-ABS51-C001-22-C002-31-6
BAC5-004-CITV-S0-ABS51-C001-22-C002-31-LV-1 Specifications Pressure range 0...64 bar Design With integrated LED-yellow and VDR	230V/50-60Hz	15 mm	15 mm	65 mm	See availability	2.554,10 lei	Quantity Details Documents — BAC5-004-CITV-S0-ABS51-C001-22-C002-31-LV-1
BAC5-004-CITV-S0-ABS51-C001-22-C002-31-LVCV20-1 Specifications Pressure range 0...64 bar Design With integrated LED-yellow, VDR and PVC-cable (2 m)	230V/50-60Hz	15 mm	15 mm	65 mm	See availability	2.600,50 lei	Quantity Details Documents — BAC5-004-CITV-S0-ABS51-C001-22-C002-31-LVCV20-1
BAC5-004-CITV-S0-ABS51-C001-03-C002-31-6 Specifications Pressure range 0...64 bar Design Standard	24VDC / 48V/50-60Hz	15 mm	15 mm	65 mm	See availability	2.527,00 lei	Quantity Details Documents — BAC5-004-CITV-S0-ABS51-C001-03-C002-31-6
BAC5-004-CITV-S0-ABS51-C001-03-C002-31-LV-2 Specifications Pressure range 0...64 bar Design With integrated LED-yellow and VDR	24VDC / 48V/50-60Hz	15 mm	15 mm	65 mm	See availability	2.554,60 lei	Quantity Details Documents — BAC5-004-CITV-S0-ABS51-C001-03-C002-31-LV-2
BAC5-004-CITV-S0-ABS51-C001-03-C002-31-LVCV20-2 Specifications Pressure range 0...64 bar Design With integrated LED-yellow, VDR and PVC-cable (2 m)	24VDC / 48V/50-60Hz	15 mm	15 mm	65 mm	See availability	2.594,90 lei	Quantity Details Documents — BAC5-004-CITV-S0-ABS51-C001-03-C002-31-LVCV20-2
BAC5-005-CITV-S0-ABS51-C001-22-C002-31-6 Specifications Pressure range 0...40 bar Design Standard	230V/50-60Hz	20 mm	20 mm	76 mm	See availability	2.848,90 lei	Quantity Details Documents — BAC5-005-CITV-S0-ABS51-C001-22-C002-31-6
BAC5-005-CITV-S0-ABS51-C001-22-C002-31-LV-1 Specifications Pressure range 0...40 bar Design With integrated LED-yellow and VDR	230V/50-60Hz	20 mm	20 mm	76 mm	See availability	2.875,90 lei	Quantity Details Documents — BAC5-005-CITV-S0-ABS51-C001-22-C002-31-LV-1
BAC5-005-CITV-S0-ABS51-C001-22-C002-31-LVCV20-1 Specifications Pressure range 0...40 bar Design With integrated LED-yellow, VDR and PVC-cable (2 m)	230V/50-60Hz	20 mm	20 mm	76 mm	See availability	2.922,30 lei	Quantity Details Documents — BAC5-005-CITV-S0-ABS51-C001-22-C002-31-LVCV20-1
BAC5-005-CITV-S0-ABS51-C001-03-C002-31-6 Specifications Pressure range 0...40 bar Design Standard	24VDC / 48V/50-60Hz	20 mm	20 mm	76 mm	See availability	2.848,90 lei	Quantity Details Documents — BAC5-005-CITV-S0-ABS51-C001-03-C002-31-6
BAC5-005-CITV-S0-ABS51-C001-03-C002-31-LV-2 Specifications Pressure range 0...40 bar Design With integrated LED-yellow and VDR	24VDC / 48V/50-60Hz	20 mm	20 mm	76 mm	See availability	2.876,40 lei	Quantity Details Documents — BAC5-005-CITV-S0-ABS51-C001-03-C002-31-LV-2
BAC5-005-CITV-S0-ABS51-C001-03-C002-31-LVCV20-2 Specifications Pressure range 0...40 bar Design With integrated LED-yellow, VDR and PVC-cable (2 m)	24VDC / 48V/50-60Hz	20 mm	20 mm	76 mm	See availability	2.916,70 lei	Quantity Details Documents — BAC5-005-CITV-S0-ABS51-C001-03-C002-31-LVCV20-2
BAC5-006-CITV-S0-ABS51-C001-22-C002-31-6 Specifications Pressure range 0...40 bar Design Standard	230V/50-60Hz	25 mm	25 mm	92 mm	See availability	3.097,20 lei	Quantity Details Documents — BAC5-006-CITV-S0-ABS51-C001-22-C002-31-6
BAC5-006-CITV-S0-ABS51-C001-22-C002-31-LV-1 Specifications Pressure range 0...40 bar Design With integrated LED-yellow and VDR	230V/50-60Hz	25 mm	25 mm	92 mm	See availability	3.124,30 lei	Quantity Details Documents — BAC5-006-CITV-S0-ABS51-C001-22-C002-31-LV-1
BAC5-006-CITV-S0-ABS51-C001-22-C002-31-LVCV20-1 Specifications Pressure range 0...40 bar Design With integrated LED-yellow, VDR and PVC-cable (2 m)	230V/50-60Hz	25 mm	25 mm	92 mm	See availability	3.170,70 lei	Quantity Details Documents — BAC5-006-CITV-S0-ABS51-C001-22-C002-31-LVCV20-1
BAC5-006-CITV-S0-ABS51-C001-03-C002-31-6 Specifications Pressure range 0...40 bar Design Standard	24VDC / 48V/50-60Hz	25 mm	25 mm	92 mm	See availability	3.097,20 lei	Quantity Details Documents — BAC5-006-CITV-S0-ABS51-C001-03-C002-31-6
BAC5-006-CITV-S0-ABS51-C001-03-C002-31-LV-2 Specifications Pressure range 0...40 bar Design With integrated LED-yellow and VDR	24VDC / 48V/50-60Hz	25 mm	25 mm	92 mm	See availability	3.124,80 lei	Quantity Details Documents — BAC5-006-CITV-S0-ABS51-C001-03-C002-31-LV-2
BAC5-006-CITV-S0-ABS51-C001-03-C002-31-LVCV20-2 Specifications Pressure range 0...40 bar Design With integrated LED-yellow, VDR and PVC-cable (2 m)	24VDC / 48V/50-60Hz	25 mm	25 mm	92 mm	See availability	3.165,10 lei	Quantity Details Documents — BAC5-006-CITV-S0-ABS51-C001-03-C002-31-LVCV20-2
BAC5-007-CITV-S0-ABS51-C001-22-C002-31-6 Specifications Pressure range 0...25 bar Design Standard	230V/50-60Hz	32 mm	32 mm	106 mm	See availability	3.266,00 lei	Quantity Details Documents — BAC5-007-CITV-S0-ABS51-C001-22-C002-31-6
BAC5-007-CITV-S0-ABS51-C001-22-C002-31-LV-1 Specifications Pressure range 0...25 bar Design With integrated LED-yellow and VDR	230V/50-60Hz	32 mm	32 mm	106 mm	See availability	3.293,10 lei	Quantity Details Documents — BAC5-007-CITV-S0-ABS51-C001-22-C002-31-LV-1
BAC5-007-CITV-S0-ABS51-C001-22-C002-31-LVCV20-1 Specifications Pressure range 0...25 bar Design With integrated LED-yellow, VDR and PVC-cable (2 m)	230V/50-60Hz	32 mm	32 mm	106 mm	See availability	3.339,50 lei	Quantity Details Documents — BAC5-007-CITV-S0-ABS51-C001-22-C002-31-LVCV20-1
BAC5-007-CITV-S0-ABS51-C001-03-C002-31-6 Specifications Pressure range 0...25 bar Design Standard	24VDC / 48V/50-60Hz	32 mm	32 mm	106 mm	See availability	3.266,00 lei	Quantity Details Documents — BAC5-007-CITV-S0-ABS51-C001-03-C002-31-6
BAC5-007-CITV-S0-ABS51-C001-03-C002-31-LV-2 Specifications Pressure range 0...25 bar Design With integrated LED-yellow and VDR	24VDC / 48V/50-60Hz	32 mm	32 mm	106 mm	See availability	3.293,60 lei	Quantity Details Documents — BAC5-007-CITV-S0-ABS51-C001-03-C002-31-LV-2
BAC5-007-CITV-S0-ABS51-C001-03-C002-31-LVCV20-2 Specifications Pressure range 0...25 bar Design With integrated LED-yellow, VDR and PVC-cable (2 m)	24VDC / 48V/50-60Hz	32 mm	32 mm	106 mm	See availability	3.333,90 lei	Quantity Details Documents — BAC5-007-CITV-S0-ABS51-C001-03-C002-31-LVCV20-2
