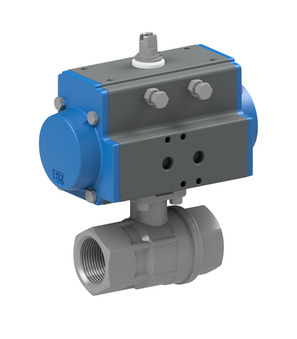

Ball valve with pneumatic actuator Series BAB1

Ball valves - pneumatically operated

Ball valve with pneumatic actuator Series BAB1

Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C

Data sheets, CAD files and further documents are available with the respective variant.

58Articles
Store guide
Other series

All prices exclude tax.

Grundversion

AvailabilityPriceQuantity
BAB1-004-SSTV-D0 RP 1/2" 15 mm 67 mm 0...40 bar 1.241,30 lei
BAB1-004-SSTV-D0B RP 1/2" 15 mm 67 mm 0...64 bar 1.521,30 lei
BAB1-005-SSTV-D0 RP 3/4" 20 mm 78 mm 0...40 bar 1.298,50 lei
BAB1-005-SSTV-D0B RP 3/4" 20 mm 78 mm 0...64 bar 1.578,40 lei
BAB1-006-SSTV-D0 RP 1" 25 mm 90 mm 0...40 bar 1.424,40 lei
BAB1-006-SSTV-D0B RP 1" 25 mm 90 mm 0...64 bar 1.704,40 lei
BAB1-007-SSTV-D0 RP 1 1/4" 32 mm 100 mm 0...40 bar 1.681,00 lei
BAB1-007-SSTV-D0B RP 1 1/4" 32 mm 100 mm 0...64 bar 1.960,90 lei
BAB1-008-SSTV-D0 RP 1 1/2" 40 mm 112 mm 0...40 bar 2.150,20 lei
BAB1-009-SSTV-D0 RP 2" 50 mm 135 mm 0...40 bar 2.658,60 lei

Varianten

AvailabilityPriceQuantity
BAB1-004-SSTV-D0B-EB0X01
Specifications
Pressure range
0...64 bar
Switch type
Crouzet 831613
Contact material
Silver-nickel
Material of case
Plastic
- RP 1/2" 15 mm 67 mm 2.041,00 lei
BAB1-004-SSTV-D0B-ABS51-C001-22-C002-31-6
Specifications
Pressure range
0...64 bar
Design
Standard
230V/50-60Hz RP 1/2" 15 mm 67 mm 2.271,50 lei
BAB1-004-SSTV-D0B-ABS51-C001-22-C002-31-LV-1
Specifications
Pressure range
0...64 bar
Design
With integrated LED-yellow and VDR
230V/50-60Hz RP 1/2" 15 mm 67 mm 2.298,60 lei
BAB1-004-SSTV-D0B-ABS51-C001-22-C002-31-LVCV20-1
Specifications
Pressure range
0...64 bar
Design
With integrated LED-yellow, VDR and PVC-cable (2 m)
230V/50-60Hz RP 1/2" 15 mm 67 mm 2.345,00 lei
BAB1-004-SSTV-D0B-ABS51-C001-03-C002-31-6
Specifications
Pressure range
0...64 bar
Design
Standard
24VDC / 48V/50-60Hz RP 1/2" 15 mm 67 mm 2.271,50 lei
BAB1-004-SSTV-D0B-ABS51-C001-03-C002-31-LV-2
Specifications
Pressure range
0...64 bar
Design
With integrated LED-yellow and VDR
24VDC / 48V/50-60Hz RP 1/2" 15 mm 67 mm 2.299,10 lei
BAB1-004-SSTV-D0B-ABS51-C001-03-C002-31-LVCV20-2
Specifications
Pressure range
0...64 bar
Design
With integrated LED-yellow, VDR and PVC-cable (2 m)
24VDC / 48V/50-60Hz RP 1/2" 15 mm 67 mm 2.339,40 lei
BAB1-005-SSTV-D0B-ABS51-C001-22-C002-31-6
Specifications
Pressure range
0...64 bar
Design
Standard
230V/50-60Hz RP 3/4" 20 mm 78 mm 2.328,70 lei
BAB1-005-SSTV-D0B-ABS51-C001-22-C002-31-LV-1
Specifications
Pressure range
0...64 bar
Design
With integrated LED-yellow and VDR
230V/50-60Hz RP 3/4" 20 mm 78 mm 2.355,70 lei
BAB1-005-SSTV-D0B-ABS51-C001-22-C002-31-LVCV20-1
Specifications
Pressure range
0...64 bar
Design
With integrated LED-yellow, VDR and PVC-cable (2 m)
230V/50-60Hz RP 3/4" 20 mm 78 mm 2.402,10 lei
BAB1-005-SSTV-D0B-ABS51-C001-03-C002-31-6
Specifications
Pressure range
0...64 bar
Design
Standard
24VDC / 48V/50-60Hz RP 3/4" 20 mm 78 mm 2.328,70 lei
BAB1-005-SSTV-D0B-ABS51-C001-03-C002-31-LV-2
Specifications
Pressure range
0...64 bar
Design
With integrated LED-yellow and VDR
24VDC / 48V/50-60Hz RP 3/4" 20 mm 78 mm 2.356,20 lei
BAB1-005-SSTV-D0B-ABS51-C001-03-C002-31-LVCV20-2
Specifications
Pressure range
0...64 bar
Design
With integrated LED-yellow, VDR and PVC-cable (2 m)
24VDC / 48V/50-60Hz RP 3/4" 20 mm 78 mm 2.396,50 lei
BAB1-006-SSTV-D0B-EB0X01
Specifications
Pressure range
0...64 bar
Switch type
Crouzet 831613
Contact material
Silver-nickel
Material of case
Plastic
- RP 1" 25 mm 90 mm 2.224,10 lei
BAB1-006-SSTV-D0B-ABS51-C001-22-C002-31-6
Specifications
Pressure range
0...64 bar
Design
Standard
230V/50-60Hz RP 1" 25 mm 90 mm 2.454,60 lei
BAB1-006-SSTV-D0B-ABS51-C001-22-C002-31-LV-1
Specifications
Pressure range
0...64 bar
Design
With integrated LED-yellow and VDR
230V/50-60Hz RP 1" 25 mm 90 mm 2.481,70 lei
BAB1-006-SSTV-D0B-ABS51-C001-22-C002-31-LVCV20-1
Specifications
Pressure range
0...64 bar
Design
With integrated LED-yellow, VDR and PVC-cable (2 m)
230V/50-60Hz RP 1" 25 mm 90 mm 2.528,10 lei
BAB1-006-SSTV-D0B-ABS52-C001-04-C002-31-6-EB0X01
Specifications
Pressure range
0...64 bar
Design
Standard
Switch type
Crouzet 831613
Contact material
Silver-nickel
Material of case
Plastic
12VDC / 24V/50-60Hz RP 1" 25 mm 90 mm 3.167,10 lei
BAB1-006-SSTV-D0B-ABS51-C001-03-C002-31-6
Specifications
Pressure range
0...64 bar
Design
Standard
24VDC / 48V/50-60Hz RP 1" 25 mm 90 mm 2.454,60 lei
BAB1-006-SSTV-D0B-ABS51-C001-03-C002-31-6-EB0X01
Specifications
Pressure range
0...64 bar
Design
Standard
Switch type
Crouzet 831613
Contact material
Silver-nickel
Material of case
Plastic
24VDC / 48V/50-60Hz RP 1" 25 mm 90 mm 2.974,30 lei
BAB1-006-SSTV-D0B-ABS51-C001-03-C002-31-LV-2
Specifications
Pressure range
0...64 bar
Design
With integrated LED-yellow and VDR
24VDC / 48V/50-60Hz RP 1" 25 mm 90 mm 2.482,20 lei
BAB1-006-SSTV-D0B-ABS51-C001-03-C002-31-LV-2-EB0X01
Specifications
Pressure range
0...64 bar
Design
With integrated LED-yellow and VDR
Switch type
Crouzet 831613
Contact material
Silver-nickel
Material of case
Plastic
24VDC / 48V/50-60Hz RP 1" 25 mm 90 mm 3.001,90 lei
BAB1-006-SSTV-D0B-ABS51-C001-03-C002-31-LVCV20-2
Specifications
Pressure range
0...64 bar
Design
With integrated LED-yellow, VDR and PVC-cable (2 m)
24VDC / 48V/50-60Hz RP 1" 25 mm 90 mm 2.522,50 lei
BAB1-007-SSTV-D0B-ABS51-C001-22-C002-31-6
Specifications
Pressure range
0...64 bar
Design
Standard
230V/50-60Hz RP 1 1/4" 32 mm 100 mm 2.711,20 lei
BAB1-007-SSTV-D0B-ABS51-C001-22-C002-31-LV-1
Specifications
Pressure range
0...64 bar
Design
With integrated LED-yellow and VDR
230V/50-60Hz RP 1 1/4" 32 mm 100 mm 2.738,20 lei
BAB1-007-SSTV-D0B-ABS51-C001-22-C002-31-LVCV20-1
Specifications
Pressure range
0...64 bar
Design
With integrated LED-yellow, VDR and PVC-cable (2 m)
230V/50-60Hz RP 1 1/4" 32 mm 100 mm 2.784,60 lei
BAB1-007-SSTV-D0B-ABS51-C001-03-C002-31-6
Specifications
Pressure range
0...64 bar
Design
Standard
24VDC / 48V/50-60Hz RP 1 1/4" 32 mm 100 mm 2.711,20 lei
BAB1-007-SSTV-D0B-ABS51-C001-03-C002-31-LV-2
Specifications
Pressure range
0...64 bar
Design
With integrated LED-yellow and VDR
24VDC / 48V/50-60Hz RP 1 1/4" 32 mm 100 mm 2.738,70 lei
BAB1-007-SSTV-D0B-ABS51-C001-03-C002-31-LVCV20-2
Specifications
Pressure range
0...64 bar
Design
With integrated LED-yellow, VDR and PVC-cable (2 m)
24VDC / 48V/50-60Hz RP 1 1/4" 32 mm 100 mm 2.779,00 lei
BAB1-008-SSTV-D0-EB0X01
Specifications
Pressure range
0...40 bar
Switch type
Crouzet 831613
Contact material
Silver-nickel
Material of case
Plastic
- RP 1 1/2" 40 mm 112 mm 2.669,80 lei
