Ball valves - pneumatically operated

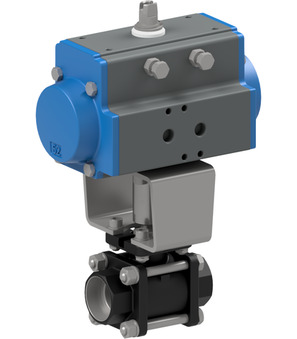

Ball valve with pneumatic actuator Series BAC5
Socket weld ends; Body Steel; Ball 1.4301; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C
Data sheets, CAD files and further documents are available with the respective variant.
72Articles
Store guide
Other series
Ball valve with pneumatic actuator Series BAB1
Ball valve with pneumatic actuator Series BAB1
Ball valve with pneumatic actuator Series BAL1, BAT1
Ball valve with pneumatic actuator Series BAL1, BAT1
Ball valve with pneumatic actuator Series BAC1
Ball valve with pneumatic actuator Series BAC1
Ball valve with pneumatic actuator Series BAC4
Ball valve with pneumatic actuator Series BAC4
Ball valve with pneumatic actuator Series BAC5
Ball valve with pneumatic actuator Series BAC5
Ball valve with pneumatic actuator Series BAB1
Ball valve with pneumatic actuator Series BAB1
Ball valve with pneumatic actuator Series BAC1
Ball valve with pneumatic actuator Series BAC1
Ball valve with pneumatic actuator Series BAC4
Ball valve with pneumatic actuator Series BAC4
Ball valve with pneumatic actuator Series BAC5
Ball valve with pneumatic actuator Series BAC5
Ball valve with pneumatic actuator Series BA541, BA542
Ball valve with pneumatic actuator Series BA541, BA542
All prices exclude tax.
Grundversion
| Availability | Price | Quantity | |||||
|---|---|---|---|---|---|---|---|
| BAC5-003-CITV-D0 | 10 mm | 10 mm | 57 mm | 0...64 bar | 1.535,60 lei | ||
| BAC5-003-CITV-D0B | 10 mm | 10 mm | 57 mm | 0...64 bar | 1.815,60 lei | ||
| BAC5-004-CITV-D0 | 15 mm | 15 mm | 65 mm | 0...64 bar | 1.458,10 lei | ||
| BAC5-004-CITV-D0B | 15 mm | 15 mm | 65 mm | 0...64 bar | 1.738,10 lei | ||
| BAC5-005-CITV-D0 | 20 mm | 20 mm | 76 mm | 0...40 bar | 1.903,30 lei | ||
| BAC5-006-CITV-D0 | 25 mm | 25 mm | 92 mm | 0...40 bar | 2.091,50 lei | ||
| BAC5-007-CITV-D0 | 32 mm | 32 mm | 106 mm | 0...25 bar | 2.260,30 lei | ||
| BAC5-008-CITV-D0 | 40 mm | 40 mm | 116 mm | 0...25 bar | 2.668,30 lei | ||
| BAC5-009-CITV-D0 | 50 mm | 50 mm | 136 mm | 0...25 bar | 3.370,60 lei | ||
| BAC5-010-CITV-D0 | 65 mm | 65 mm | 153 mm | 0...16 bar | 4.746,10 lei | ||
| BAC5-011-CITV-D0 | 80 mm | 80 mm | 180 mm | 0...16 bar | 5.614,10 lei | ||
| BAC5-012-CITV-D0 | 100 mm | 100 mm | 217 mm | 0...16 bar | 8.844,40 lei |
Varianten
| Availability | Price | Quantity | |||||
|---|---|---|---|---|---|---|---|
BAC5-003-CITV-D0B-ABS51-C001-22-C002-31-6
Specifications
|
230V/50-60Hz | 10 mm | 10 mm | 57 mm | 2.565,80 lei | ||
BAC5-003-CITV-D0B-ABS51-C001-22-C002-31-LV-1
Specifications
|
230V/50-60Hz | 10 mm | 10 mm | 57 mm | 2.592,80 lei | ||
BAC5-003-CITV-D0B-ABS51-C001-22-C002-31-LVCV20-1
Specifications
|
230V/50-60Hz | 10 mm | 10 mm | 57 mm | 2.639,20 lei | ||
BAC5-003-CITV-D0B-ABS51-C001-03-C002-31-6
Specifications
|
24VDC / 48V/50-60Hz | 10 mm | 10 mm | 57 mm | 2.565,80 lei | ||
BAC5-003-CITV-D0B-ABS51-C001-03-C002-31-LV-2
Specifications
|
24VDC / 48V/50-60Hz | 10 mm | 10 mm | 57 mm | 2.593,30 lei | ||
BAC5-003-CITV-D0B-ABS51-C001-03-C002-31-LVCV20-2
Specifications
|
24VDC / 48V/50-60Hz | 10 mm | 10 mm | 57 mm | 2.633,60 lei | ||
BAC5-004-CITV-D0B-ABS51-C001-22-C002-31-6
Specifications
|
230V/50-60Hz | 15 mm | 15 mm | 65 mm | 2.488,30 lei | ||
BAC5-004-CITV-D0B-ABS51-C001-22-C002-31-LV-1
Specifications
|
230V/50-60Hz | 15 mm | 15 mm | 65 mm | 2.515,30 lei | ||
BAC5-004-CITV-D0B-ABS51-C001-22-C002-31-LVCV20-1
Specifications
|
230V/50-60Hz | 15 mm | 15 mm | 65 mm | 2.561,70 lei | ||
BAC5-004-CITV-D0B-ABS51-C001-03-C002-31-6
Specifications
|
24VDC / 48V/50-60Hz | 15 mm | 15 mm | 65 mm | 2.488,30 lei | ||
BAC5-004-CITV-D0B-ABS51-C001-03-C002-31-LV-2
Specifications
|
24VDC / 48V/50-60Hz | 15 mm | 15 mm | 65 mm | 2.515,80 lei | ||
BAC5-004-CITV-D0B-ABS51-C001-03-C002-31-LVCV20-2
Specifications
|
24VDC / 48V/50-60Hz | 15 mm | 15 mm | 65 mm | 2.556,10 lei | ||
BAC5-005-CITV-D0-ABS51-C001-22-C002-31-6
Specifications
|
230V/50-60Hz | 20 mm | 20 mm | 76 mm | 2.653,50 lei | ||
BAC5-005-CITV-D0-ABS51-C001-22-C002-31-LV-1
Specifications
|
230V/50-60Hz | 20 mm | 20 mm | 76 mm | 2.680,60 lei | ||
BAC5-005-CITV-D0-ABS51-C001-22-C002-31-LVCV20-1
Specifications
|
230V/50-60Hz | 20 mm | 20 mm | 76 mm | 2.727,00 lei | ||
BAC5-005-CITV-D0-ABS51-C001-03-C002-31-6
Specifications
|
24VDC / 48V/50-60Hz | 20 mm | 20 mm | 76 mm | 2.653,50 lei | ||
BAC5-005-CITV-D0-ABS51-C001-03-C002-31-LV-2
Specifications
|
24VDC / 48V/50-60Hz | 20 mm | 20 mm | 76 mm | 2.681,10 lei | ||
BAC5-005-CITV-D0-ABS51-C001-03-C002-31-LVCV20-2
Specifications
|
24VDC / 48V/50-60Hz | 20 mm | 20 mm | 76 mm | 2.721,40 lei | ||
BAC5-006-CITV-D0-ABS51-C001-22-C002-31-6
Specifications
|
230V/50-60Hz | 25 mm | 25 mm | 92 mm | 2.841,70 lei | ||
BAC5-006-CITV-D0-ABS51-C001-22-C002-31-LV-1
Specifications
|
230V/50-60Hz | 25 mm | 25 mm | 92 mm | 2.868,80 lei | ||
BAC5-006-CITV-D0-ABS51-C001-22-C002-31-LVCV20-1
Specifications
|
230V/50-60Hz | 25 mm | 25 mm | 92 mm | 2.915,20 lei | ||
BAC5-006-CITV-D0-ABS51-C001-03-C002-31-6
Specifications
|
24VDC / 48V/50-60Hz | 25 mm | 25 mm | 92 mm | 2.841,70 lei | ||
BAC5-006-CITV-D0-ABS51-C001-03-C002-31-LV-2
Specifications
|
24VDC / 48V/50-60Hz | 25 mm | 25 mm | 92 mm | 2.869,30 lei | ||
BAC5-006-CITV-D0-ABS51-C001-03-C002-31-LVCV20-2
Specifications
|
24VDC / 48V/50-60Hz | 25 mm | 25 mm | 92 mm | 2.909,50 lei | ||
BAC5-007-CITV-D0-ABS51-C001-22-C002-31-6
Specifications
|
230V/50-60Hz | 32 mm | 32 mm | 106 mm | 3.010,50 lei | ||
BAC5-007-CITV-D0-ABS51-C001-22-C002-31-LV-1
Specifications
|
230V/50-60Hz | 32 mm | 32 mm | 106 mm | 3.037,60 lei | ||
BAC5-007-CITV-D0-ABS51-C001-22-C002-31-LVCV20-1
Specifications
|
230V/50-60Hz | 32 mm | 32 mm | 106 mm | 3.084,00 lei | ||
BAC5-007-CITV-D0-ABS51-C001-03-C002-31-6
Specifications
|
24VDC / 48V/50-60Hz | 32 mm | 32 mm | 106 mm | 3.010,50 lei |
