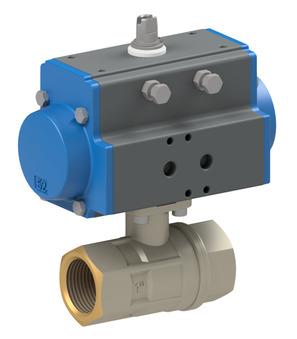

Ball valve with pneumatic actuator Series BAB1

Body, Ball Brass; Seals PTFE/FKM/EPDM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C

Kugelhahn mit Druckluftdrehantrieb Serie BAB1 Kugelhahn mit Druckluftdrehantrieb Serie BAB1
Grundversion
Female thread DN Length Pressure range Voltage Design Switch type Contact material Material of case Function Diameter Hose Connection Direction of flow control Body Screen Diameter Male thread Flow rate Actuation Flow rate at 6.3bar/Δp=1bar Max. inlet pressure Stroke Piston rod thread Push force at 6 bar Seal Type Sequence
RP 1/4" 8 mm 67 mm 0...40 bar - - - - - - - - - - - - - - - - - - - - - BAB1-002-BLTV-S0 25000001
RP 3/8" 10 mm 67 mm 0...40 bar - - - - - - - - - - - - - - - - - - - - - BAB1-003-BLTV-S0 25000009
RP 1/2" 15 mm 67 mm 0...40 bar - - - - - - - - - - - - - - - - - - - - - BAB1-004-BLTV-S0 25000017
RP 3/4" 20 mm 76 mm 0...40 bar - - - - - - - - - - - - - - - - - - - - - BAB1-005-BLTV-S0 25000025
RP 1" 25 mm 90 mm 0...40 bar - - - - - - - - - - - - - - - - - - - - - BAB1-006-BLTV-S0 25000040
RP 1 1/4" 32 mm 102 mm 0...40 bar - - - - - - - - - - - - - - - - - - - - - BAB1-007-BLTV-S0 25000053
RP 1 1/2" 40 mm 114 mm 0...40 bar - - - - - - - - - - - - - - - - - - - - - BAB1-008-BLTV-S0 25000064
RP 2" 50 mm 138 mm 0...40 bar - - - - - - - - - - - - - - - - - - - - - BAB1-009-BLTV-S0 25000073
RP 2 1/2" 65 mm 165 mm 0...25 bar - - - - - - - - - - - - - - - - - - - - - BAB1-010-BLTV-S0 25000083
RP 3" 80 mm 188 mm 0...16 bar - - - - - - - - - - - - - - - - - - - - - BAB1-011-BLTV-S0 25000091
RP 4" 100 mm 225 mm 0...16 bar - - - - - - - - - - - - - - - - - - - - - BAB1-012-BLTV-S0 25000099
Varianten
Female thread DN Length Pressure range Voltage Design Switch type Contact material Material of case Function Diameter Hose Connection Direction of flow control Body Screen Diameter Male thread Flow rate Actuation Flow rate at 6.3bar/Δp=1bar Max. inlet pressure Stroke Piston rod thread Push force at 6 bar Seal Type Sequence
RP 1/4" 8 mm 67 mm 0...40 bar 230V/50-60Hz Standard - - - - - - - - - - - - - - - - - - - BAB1-002-BLTV-S0-ABS53-C001-22-C002-31-6 25000002
RP 1/4" 8 mm 67 mm 0...40 bar 230V/50-60Hz With integrated LED-yellow and VDR - - - - - - - - - - - - - - - - - - - BAB1-002-BLTV-S0-ABS53-C001-22-C002-31-LV-1 25000003
RP 1/4" 8 mm 67 mm 0...40 bar 230V/50-60Hz With integrated LED-yellow, VDR and PVC-cable (2 m) - - - - - - - - - - - - - - - - - - - BAB1-002-BLTV-S0-ABS53-C001-22-C002-31-LVCV20-1 25000004
RP 1/4" 8 mm 67 mm 0...40 bar 24VDC / 48V/50-60Hz Standard - - - - - - - - - - - - - - - - - - - BAB1-002-BLTV-S0-ABS53-C001-03-C002-31-6 25000005
RP 1/4" 8 mm 67 mm 0...40 bar 24VDC / 48V/50-60Hz With integrated LED-yellow and VDR - - - - - - - - - - - - - - - - - - - BAB1-002-BLTV-S0-ABS53-C001-03-C002-31-LV-2 25000006
RP 1/4" 8 mm 67 mm 0...40 bar 24VDC / 48V/50-60Hz With integrated LED-yellow, VDR and PVC-cable (2 m) - - - - - - - - - - - - - - - - - - - BAB1-002-BLTV-S0-ABS53-C001-03-C002-31-LVCV20-2 25000007
RP 3/8" 10 mm 67 mm 0...40 bar 230V/50-60Hz Standard - - - - - - - - - - - - - - - - - - - BAB1-003-BLTV-S0-ABS53-C001-22-C002-31-6 25000010
RP 3/8" 10 mm 67 mm 0...40 bar 230V/50-60Hz With integrated LED-yellow and VDR - - - - - - - - - - - - - - - - - - - BAB1-003-BLTV-S0-ABS53-C001-22-C002-31-LV-1 25000011
RP 3/8" 10 mm 67 mm 0...40 bar 230V/50-60Hz With integrated LED-yellow, VDR and PVC-cable (2 m) - - - - - - - - - - - - - - - - - - - BAB1-003-BLTV-S0-ABS53-C001-22-C002-31-LVCV20-1 25000012
RP 3/8" 10 mm 67 mm 0...40 bar 24VDC / 48V/50-60Hz Standard - - - - - - - - - - - - - - - - - - - BAB1-003-BLTV-S0-ABS53-C001-03-C002-31-6 25000013
RP 3/8" 10 mm 67 mm 0...40 bar 24VDC / 48V/50-60Hz With integrated LED-yellow and VDR - - - - - - - - - - - - - - - - - - - BAB1-003-BLTV-S0-ABS53-C001-03-C002-31-LV-2 25000014
RP 3/8" 10 mm 67 mm 0...40 bar 24VDC / 48V/50-60Hz With integrated LED-yellow, VDR and PVC-cable (2 m) - - - - - - - - - - - - - - - - - - - BAB1-003-BLTV-S0-ABS53-C001-03-C002-31-LVCV20-2 25000015
RP 1/2" 15 mm 67 mm 0...40 bar 230V/50-60Hz Standard - - - - - - - - - - - - - - - - - - - BAB1-004-BLTV-S0-ABS53-C001-22-C002-31-6 25000018
RP 1/2" 15 mm 67 mm 0...40 bar 230V/50-60Hz With integrated LED-yellow and VDR - - - - - - - - - - - - - - - - - - - BAB1-004-BLTV-S0-ABS53-C001-22-C002-31-LV-1 25000019
RP 1/2" 15 mm 67 mm 0...40 bar 230V/50-60Hz With integrated LED-yellow, VDR and PVC-cable (2 m) - - - - - - - - - - - - - - - - - - - BAB1-004-BLTV-S0-ABS53-C001-22-C002-31-LVCV20-1 25000020
RP 1/2" 15 mm 67 mm 0...40 bar 24VDC / 48V/50-60Hz Standard - - - - - - - - - - - - - - - - - - - BAB1-004-BLTV-S0-ABS53-C001-03-C002-31-6 25000021
RP 1/2" 15 mm 67 mm 0...40 bar 24VDC / 48V/50-60Hz With integrated LED-yellow and VDR - - - - - - - - - - - - - - - - - - - BAB1-004-BLTV-S0-ABS53-C001-03-C002-31-LV-2 25000022
RP 1/2" 15 mm 67 mm 0...40 bar 24VDC / 48V/50-60Hz With integrated LED-yellow, VDR and PVC-cable (2 m) - - - - - - - - - - - - - - - - - - - BAB1-004-BLTV-S0-ABS53-C001-03-C002-31-LVCV20-2 25000023
RP 3/4" 20 mm 76 mm 0...40 bar - - - - - - 6 mm 1/8" From thread to hose (outgoing air) Nickel plated brass Edelstahl - - - - - - - - - - BAB1-005-BLTV-S0-UFC05-C-18-06-SLS-M18-NS 25000027
RP 3/4" 20 mm 76 mm 0...40 bar 230V/50-60Hz Standard - - - - - - - - - - - - - - - - - - - BAB1-005-BLTV-S0-ABS53-C001-22-C002-31-6 25000029
RP 3/4" 20 mm 76 mm 0...40 bar 230V/50-60Hz With integrated LED-yellow and VDR - - - - - - - - - - - - - - - - - - - BAB1-005-BLTV-S0-ABS53-C001-22-C002-31-LV-1 25000030
RP 3/4" 20 mm 76 mm 0...40 bar 230V/50-60Hz With integrated LED-yellow, VDR and PVC-cable (2 m) - - - - - - - - - - - - - - - - - - - BAB1-005-BLTV-S0-ABS53-C001-22-C002-31-LVCV20-1 25000031
RP 3/4" 20 mm 76 mm 0...40 bar 24VDC / 48V/50-60Hz Standard - - - - - - - - - - - - - - - - - - - BAB1-005-BLTV-S0-ABS53-C001-03-C002-31-6 25000032
RP 3/4" 20 mm 76 mm 0...40 bar 24VDC / 48V/50-60Hz Standard - - - - - - - - - - - - - - - - - - - BAB1-005-BLTV-S0-ABS53-C001-03-C002-31-6-MS-2P-052100-IFM001 25000033
RP 3/4" 20 mm 76 mm 0...40 bar 24VDC / 48V/50-60Hz Standard IN5225 - Plastic NO PNP - - - - - - - - - - - - - - - BAB1-005-BLTV-S0-ABS53-C001-03-C002-31-6-EB0X92 25000034
RP 3/4" 20 mm 76 mm 0...40 bar 24VDC / 48V/50-60Hz Standard Crouzet 831613 Silver-nickel Plastic - - - - - - - - - - - - - - - - BAB1-005-BLTV-S0-ABS53-C001-03-C002-31-6-EB0X01 25000035
RP 3/4" 20 mm 76 mm 0...40 bar 24VDC / 48V/50-60Hz With integrated LED-yellow and VDR - - - - - - - - - - - - - - - - - - - BAB1-005-BLTV-S0-ABS53-C001-03-C002-31-LV-2 25000036
RP 3/4" 20 mm 76 mm 0...40 bar 24VDC / 48V/50-60Hz With integrated LED-yellow, VDR and PVC-cable (2 m) - - - - - - - - - - - - - - - - - - - BAB1-005-BLTV-S0-ABS53-C001-03-C002-31-LVCV20-2 25000037
RP 1" 25 mm 90 mm 0...40 bar - - - - - - 6 mm 1/8" From thread to hose (outgoing air) Nickel plated brass Edelstahl - - - - - - - - - - BAB1-006-BLTV-S0-UFC05-C-18-06-SLS-M18-NS 25000041
