BULY-250-DSE-G-3C02

Name: BULY-250-DSE-G-3C02
Brand: STASTO
SKU: BULY-250-DSE-G-3C02
Price: 8629.2 RON
Availability: InStock

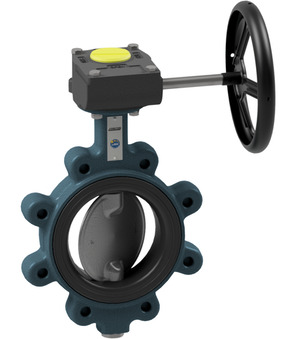

Butterfly valve with manual gear box Series BULY-DSE-G-3C02; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated C5-High According to EN-ISO 12944, RAL5009; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 250mm; Length 68mm; Nominal flange pressure ANSI150; Flange thread UNC; Stainless steel nameplate; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

Intrastat No.: 84818085
Country of origin: Italy
Short Itemnumber: BULY250DSEG3C02

butterfly valve with manual gear box series BULY-DSE-G-3C02; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated C5-High according to EN-ISO 12944, RAL5009; disc AISI 316; shaft AISI 430; liner EPDM; medium temperature -10...+130°C; pressure range 0...16bar; DN 250mm; length 68mm; nominal flange pressure ANSI150; flange thread UNC; Type plate in stainless steel; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness

8.629,20 lei 8629.2 RON 8.629,20 lei

DN
- 250 mm
Length
- 68 mm

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

DN	250 mm
Length	68 mm

BULY-250-DSE-B-3C02 x 1.0

Butterfly valve with bare shaft BULY-250-DSE-B-3C02

Butterfly valve with bare shaft Series BUL-DSE-B-3C02; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated RAL5009 C5-High According to EN-ISO 12944; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 250mm; Length 68mm; Pressure range 0...16bar; Nominal flange pressure ANSI150; Flange thread UNC; Stainless steel nameplate; Stainless steel screws; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

Add to Cart
