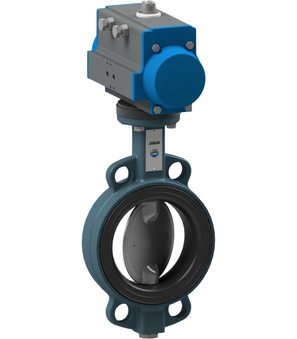

Butterfly valve with pneumatic actuator BUW6-050-DSX-S22

Butterfly valve with pneumatic actuator BUW6-050-DSX-S22

butterfly valve with pneumatic actuator series BUW6-DSX-S2; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM HT; nominal flange pressure PN10/16/ANSI150; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+150°C; pressure range 0...10bar; DN 50mm; length 43mm; actuator PAS0855

Intrastat No.: 84818085
Country of origin: Italy
Weight: 7.75 Kg
Short Itemnumber: BUW6050DSXS22
https://www.stasto.ro/web/image/product.template/223720/image_1920?unique=b9bbba7

butterfly valve with pneumatic actuator series BUW6-DSX-S2; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM HT; nominal flange pressure PN10/16/ANSI150; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+150°C; pressure range 0...10bar; DN 50mm; length 43mm; actuator PAS0855

2.786,10 lei 2786.1 RON 2.786,10 lei

Not Available For Sale

  • DN
  • Length
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 50 mm
Length 43 mm
pressure
Pressure range 0...16 bar
characteristics
Actuator PAS0855
BUW6-050-DSX-B x 1.0
BUW6-050-DSX-B
Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM HT; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+150°C; Pressure range 0...16bar; DN 50mm; Length 43mm
Add to Cart
Pneumatic actuator PAS0855
PAS0855 x 1.0
Pneumatic actuator PAS0855
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 28,7Nm
Add to Cart
