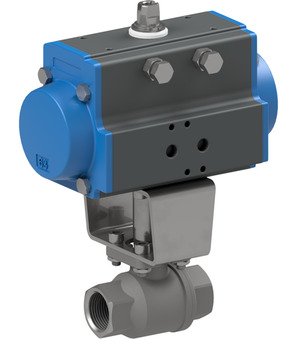

Ball valve with pneumatic actuator BA069-34-D0

Ball valve with pneumatic actuator BA069-34-D0

Ball valve with pneumatic actuator Series BA069; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 3/4"; Nominal diameter 20mm; Pressure range 0...105bar; Length 79mm; Actuator PAD063

Intrastat No.: 84818081
Country of origin: Italy
Weight: 2.61 Kg
Short Itemnumber: BA06934D0
https://www.stasto.ro/web/image/product.template/137181/image_1920?unique=b6f2086

ball valve with pneumatic actuator series BA069; female thread; body, ball AISI 316; seals PTFE/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 3/4"; nominal diameter 20mm; pressure range 0...105bar; length 79mm; actuator PAD063

1.983,40 lei 1983.4 RON 1.983,40 lei

Not Available For Sale

excl. tax
  • Female thread
  • DN
  • Length
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...105 bar
Female thread RP 3/4"
DN 20 mm
Length 79 mm
Documents
Data sheets, drawings and CAD files
Pressure range 0...105 bar
Female thread RP 3/4"
DN 20 mm
Length 79 mm

BA069-34-D0

Documents

1 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1
Danish / Dansk
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
Greek / Ελληνικά
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Spanish / Español
ZIP

Data Sheets

1
Finnish / Suomi
ZIP

Data Sheets

1
French / Français
ZIP

Data Sheets

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Italian / Italiano
ZIP

Data Sheets

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1
Dutch / Nederlands
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Romanian / română
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
Swedish / Svenska
ZIP

Data Sheets

1
700000-3/4"
700000-3/4" x 1.0 Pcs
700000-3/4"
Ball valve made of stainless steel; Full bore; Two-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; Connection RP 3/4"; Nominal diameter 20mm; Pressure range 0-105bar; Length 79mm
Pneumatic actuator PAD063
PAD063 x 1.0 Pcs
Pneumatic actuator PAD063
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 36Nm
RI3783 x 1.0 Pcs
RI3783
Mounting bracket; F05/F03-F04,14-7
