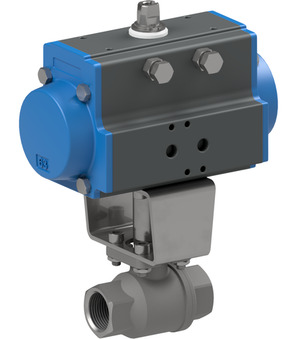

Ball valve with pneumatic actuator BA069-12-D0-AB

Ball valve with pneumatic actuator BA069-12-D0-AB

Ball valve with pneumatic actuator Series BA069-D0-AB; ATEX II 2 G/D; Female thread; Body, Ball 1.4401; Seals PTFE-Graphite reinforced/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 1/2"; Nominal diameter 15mm; Pressure range 0…140bar; Length 66mm; Actuator PAD052

Intrastat No.: 84818081
Country of origin: Italy
Weight: 1.53 Kg
Short Itemnumber: BA06912D0AB
https://www.stasto.ro/web/image/product.template/213561/image_1920?unique=b6f2086

ball valve with pneumatic actuator series BA069-D0-AB; ATEX II 2 G/D; female thread; body, ball AISI 316; seals PTFE-graphite reinforced/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 1/2"; nominal diameter 15mm; pressure range 0…140bar; length 66mm; actuator PAD052

16.066.248,00 lei 16066248.0 RON 16.066.248,00 lei

On request

  • Female thread
  • DN
  • Length
  • Design
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...140 bar
Female thread RP 1/2"
DN 15 mm
Length 66 mm
All specifications (5)
Documents
Data sheets, drawings and CAD files
Pressure range 0...140 bar
Female thread RP 1/2"
DN 15 mm
Length 66 mm
Design ATEX

BA069-12-D0-AB

Documents

1 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1
Danish / Dansk
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
Greek / Ελληνικά
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Spanish / Español
ZIP

Data Sheets

1
Finnish / Suomi
ZIP

Data Sheets

1
French / Français
ZIP

Data Sheets

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Italian / Italiano
ZIP

Data Sheets

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1
Dutch / Nederlands
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Romanian / română
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
Swedish / Svenska
ZIP

Data Sheets

1
Ball valve made of stainless steel BA069-12-L-A
BA069-12-L-A x 1.0 Pcs
Ball valve made of stainless steel BA069-12-L-A
Ball valve made of stainless steel Series BA069-A; ATEX II 2 G/D; Fire-safe; TA-Luft; Full bore; Two-parts type; Female thread; Body, Ball 1.4401; Seals PTFE-Graphite reinforced/FKM; Medium temperature -20...+160°C; RP 1/2"; Nominal diameter 15mm; Pressure range 0...140bar; Length 66mm
Pneumatic actuator PAD052
PAD052 x 1.0 Pcs
Pneumatic actuator PAD052
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 20Nm
RI3782 x 1.0 Pcs
RI3782
Mounting bracket; F03/F03,11-5
