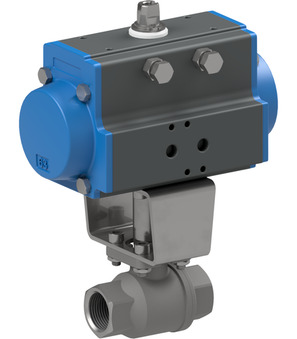

Ball valve with pneumatic actuator BA069-10-D0

Ball valve with pneumatic actuator BA069-10-D0

Ball valve with pneumatic actuator Series BA069; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 1"; Nominal diameter 25mm; Pressure range 0...105bar; Length 93mm; Actuator PAD063

Intrastat No.: 84818081
Country of origin: Italy
Weight: 2.97 Kg
Short Itemnumber: BA06910D0
https://www.stasto.ro/web/image/product.template/124051/image_1920?unique=b6f2086

ball valve with pneumatic actuator series BA069; female thread; body, ball AISI 316; seals PTFE/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 1"; nominal diameter 25mm; pressure range 0...105bar; length 93mm; actuator PAD063

2.206,30 lei 2206.3 RON 2.206,30 lei

Not Available For Sale

excl. tax
  • Female thread
  • DN
  • Length
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...105 bar
Female thread RP 1"
DN 25 mm
Length 93 mm
Documents
Data sheets, drawings and CAD files
Pressure range 0...105 bar
Female thread RP 1"
DN 25 mm
Length 93 mm

BA069-10-D0

Documents

1 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1
Danish / Dansk
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
Greek / Ελληνικά
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Spanish / Español
ZIP

Data Sheets

1
Finnish / Suomi
ZIP

Data Sheets

1
French / Français
ZIP

Data Sheets

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Italian / Italiano
ZIP

Data Sheets

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1
Dutch / Nederlands
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Romanian / română
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
Swedish / Svenska
ZIP

Data Sheets

1
Ball valve made of stainless steel 700000-1"
700000-1" x 1.0 Pcs
Ball valve made of stainless steel 700000-1"
Ball valve made of stainless steel Series 704000, 700000; Full bore; Two-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; Connection Rp 1"; Nominal diameter 25mm; Pressure range 0-105bar; Length 93mm
Pneumatic actuator PAD063
PAD063 x 1.0 Pcs
Pneumatic actuator PAD063
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 36Nm
RI3030 x 1.0 Pcs
RI3030
Mounting bracket; F05/F03-F04,11-8
