Flanged ball valve with pneumatic actuator BA040-032-D0

Price.

2.515,30 lei
Flanged ball valve with pneumatic actuator Series BA040-D Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Flanged ball valves - pneumatically operated
  5. Flanged ball valve with pneumatic actuator Series BA040-D
  6. BA040-032-D0
Flanged ball valve with pneumatic actuator BA040-032-D0
BAEB-015-UITV-D0B-ABS51-C001-22-C002-31-6
BAEB-015-UITV-D0B-ABS51-C001-22-C002-31-6
3.560,30 lei
3.560,30 lei
BAC1-002-SSTV-S0-ABS53-C001-03-C002-31-LVCV20-2
BAC1-002-SSTV-S0-ABS53-C001-03-C002-31-LVCV20-2
2.631,60 lei
2.631,60 lei

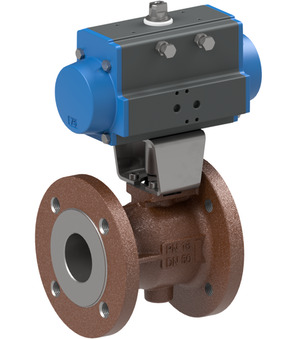

Flanged ball valve with pneumatic actuator BA040-032-D0

Flanged ball valve with pneumatic actuator Series BA040; Flange PN16; Body Cast iron EN-GJL-250; Ball 1.4301; Seals PTFE/NBR; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+120°C; Pressure range 0...16bar; Nominal diameter 32mm; Length 130mm; Length EN558-1R14; Actuator PAD052

Intrastat No.: 84818081
Country of origin: Italy
Weight: 4.55 Kg
Short Itemnumber:BA040032D0
https://www.stasto.ro/web/image/product.template/121800/image_1920?unique=e5e4a60

flanged ball valve with pneumatic actuator series BA040; flange PN16; body cast iron EN-GJL-250; ball AISI 304; seals PTFE/NBR; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+120°C; pressure range 0...16bar; nominal diameter 32mm; length 130mm; length EN558-1R14; actuator PAD052

2.515,30 lei 2515.3 RON 2.515,30 lei

Not Available For Sale

  • Valve interface Namur
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
DN 32 mm
Length 130 mm
pressure
Pressure range 0...16 bar
characteristics
Actuator PAD052

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Flanged ball valve with pneumatic actuator Series BA040-D_EN.pdf
Download
CAD / 3D
1
CADSTEP_BA040032D0.stp
Download

ZIP
Datové listy
1
Datový list_kulový kohout - přírubový, s otočným pneumatickým pohonem série BA040-D_CS.pdf
Download

ZIP
Data Sheets
1
Datablad_Flangekugleventil med pneumatisk drejedrev Serie BA040-D_DA_DK.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Flanschkugelhahn mit Druckluftdrehantrieb Serie BA040-D_DE.pdf
Download

ZIP
Data Sheets
1
Δελτίο δεδομένων_Φλαντζωτή σφαιρική βάνα με πνευματικό περιστροφικό ενεργοποιητή Σειρά BA040-D_EL_GR.pdf
Download

ZIP
Data Sheets
1
Ficha técnica_Válvula de bola con bridas con actuador neumático rotativo Serie BA040-D_ES.pdf
Download

ZIP
Data Sheets
1
Tietolehti_Laippakuulaventtiili paineilmatoimisella kääntötoimilaitteella Sarja BA040-D_FI.pdf
Download

ZIP
Data Sheets
1
Fiche technique_Vanne à boisseau sphérique à brides avec actionneur pneumatique rotatif Série BA040-D_FR.pdf
Download

ZIP
Data Sheets
1
Podatkovni list_Prirubnički kuglasti ventil s pneumatskim rotacijskim pogonom Serija BA040-D_HR.pdf
Download

ZIP
Adatlapok
1
Adatlap_pneumatikus forgatóhengerrel működtetett karimás gömbcsap sorozat BA040-D_HU.pdf
Download

ZIP
Data Sheets
1
Scheda tecnica_Valvola a sfera flangiata con attuatore pneumatico rotativo Serie BA040-D_IT.pdf
Download

ZIP
Data Sheets
1
Datablad_Flenset kuleventil med pneumatisk dreieaktuator Serie BA040-D_NB_NO.pdf
Download

ZIP
Data Sheets
1
Datasheet_Flenskogelkraan met pneumatische draaiaandrijving Serie BA040-D_NL.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_zawór kulowy kołnierzowy z napędem pneumatycznym Seria BA040-D_PL.pdf
Download

ZIP
Data Sheets
1
Fișă de date_Robinet cu bilă cu flanșă cu actuator rotativ pneumatic serie BA040-D_RO.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Prirobnična krogelna pipa s pnevmatskim rotacijskim pogonom serija BA040-D_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_kuglasti ventil sa prirubnicom i pneumatskim aktuatorom serije BA040-D_SRLATIN.pdf
Download

ZIP
Data Sheets
1
Datablad_Flänskulventil med pneumatiskt vriddon Serie BA040-D_SV.pdf
Download
BA040-32-L-03 x 1.0
Flanged ball valve BA040-32-L-03
Flanged ball valve Series BA040-L-F; Flange PN16, Full bore; Body Cast iron EN-GJL-250; Ball 1.4301; Seals PTFE/NBR; Pressure range 0...16bar; Medium temperature -10...+120°C; Nominal diameter 32mm; Length 130mm; Length EN558-1R14; Flange ISO5211 F04
Add to Cart
Pneumatic actuator PAD052
PAD052 x 1.0
Pneumatic actuator PAD052
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 20Nm
Add to Cart
Accessories
