2/2-way solenoid valve 21W4KB250-BDA08024CS

Price.

916,50 lei
2/2-way solenoid valve Series 21W, 21WA Store
  1. Products
  2. Armatures
  3. Solenoid valves for liquids and gases
  4. 2/2-way solenoid valves - pilot operated
  5. 2/2-way solenoid valve Series 21W, 21WA
  6. 21W4KB250-BDA08024CS

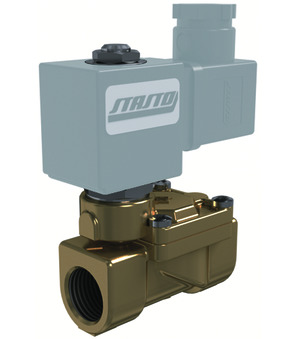

2/2-way solenoid valve 21W4KB250-BDA08024CS
2/2-way solenoid valve 21W4KB250
2/2-way solenoid valve 21W4KB250
797,10 lei
797,10 lei
2/2-way solenoid valve 21W4KB250-BDA08223DS
2/2-way solenoid valve 21W4KB250-BDA08223DS
916,50 lei
916,50 lei

2/2-way solenoid valve 21W4KB250-BDA08024CS

21W4KB250
2/2-way solenoid valve Series 21W, 21WA; Pilot-operated; NC; Body Brass; Tube Stainless steel One-piece; Seal NBR; Medium temperature -10...+90°C; Standard coil BDA; Connector size 32mm; G 1"; DN 25mm; Pressure AC/DC 0,2-16bar; Length 104mm
BDA08024CS
Coil Type BDA; Standard; Connector size 32mm; Voltage 24VDC

Intrastat No.: 84818099
Country of origin: Italy
Weight: 1.23 Kg
Short Itemnumber:21W4KB250BDA08024CS
https://www.stasto.ro/web/image/product.template/189274/image_1920?unique=eb38ccc

21W4KB250
2/2-way solenoid valve series 21W, 21WA; pilot-operated; NC; body brass; tube stainless steel one-piece; seal NBR; medium temperature -10...+90°C; standard coil BDA; connector size 32mm; G 1"; DN 25mm; pressure AC/DC 0,2-16bar; length 104mm
BDA08024CS
coil type BDA; standard; connector size 32mm; voltage 24VDC

916,50 lei 916.5 RON 916,50 lei

Not Available For Sale

  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Pressure AC/DC
  • Seal
  • Coil
  • Medium temperature
  • Approval

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 1"
DN 25 mm
Length 104 mm
Designs
Connector size 32 mm
Electrical key figures
Voltage 24VDC
Voltage type DC
pressure
Pressure AC/DC 0,2...16 bar
materials
Seal NBR
characteristics
Coil BDA
Medium temperature -10...+90 °C
Approval CE
