Pilot-operated; NC; Body Brass; Seal NBR; Medium temperature -10...+90°C; Standard coil BDA; Connector size 32mm
2/2-way solenoid valve Series SL200, 21H -
Pilot-operated; NC; Body Brass; Tube Stainless steel One-piece; Seal NBR; Medium temperature -10...+90°C; Standard coil BDA; Connector size 32mm
2/2-way solenoid valve Series 21W, 21WA -
Pilot-operated; NC; Body Brass; Tube Stainless steel One-piece; Seal NBR; Medium temperature -10...+90°C; With adjustable closing delay; Manual operation; Standard coil BDA; Connector size 32mm
2/2-way solenoid valve Series 21W-MR -
Pilot-operated; NO; Body Brass; Tube Stainless steel One-piece; Seal NBR; Medium temperature -10...+90°C; Standard coil BDA; Connector size 32mm
2/2-way solenoid valve Series 21W-NO, 21WA-NO -
Pilot-operated; NC; Piston type; Body Brass; Tube Stainless steel One-piece; Seal Fibre-glass-reinforced PTFE; Medium temperature -40...+180°C; Standard coil BDV; Connector size 32mm
2/2-way solenoid valve Series SL012 -
Pilot-operated; Relief valve for compressors; Body Brass; Stainless steel tube with soldered hexagon made of brass; Seal PTFE/FKM; Medium temperature -10...+120°C; Connector size 32mm
2/2-way solenoid valve Series 21PW -
Pilot-operated; NC; Body Stainless steel 1.4401; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Standard coil BDA; Connector size 32mm
2/2-way solenoid valve Series 21X
|

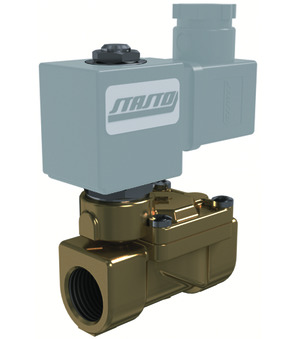

2/2-way solenoid valve Series 21W, 21WAPilot-operated; NC; Body Brass; Tube Stainless steel One-piece; Seal NBR; Medium temperature -10...+90°C; Standard coil BDA; Connector size 32mm
|
Grundversion
| Female thread | DN | Length | Design | Voltage | Voltage type | Pressure AC/DC | Seal | Medium temperature | Approval | Type | Sequence |
|---|---|---|---|---|---|---|---|---|---|---|---|
| G 3/8" | 13 mm | 60 mm | - | - | - | 0,2...16 bar | NBR | -10...+90 °C | - | 21WA3K0B130 | 20080000 |
| G 1/2" | 13 mm | 66 mm | - | - | - | 0,2...16 bar | NBR | -10...+90 °C | - | 21WA4K0B130 | 20080002 |
| G 3/4" | 19 mm | 104 mm | - | - | - | 0,2...16 bar | NBR | -10...+90 °C | - | 21W3KB190 | 20080034 |
| G 1" | 25 mm | 104 mm | - | - | - | 0,2...16 bar | NBR | -10...+90 °C | - | 21W4KB250 | 20080064 |
Varianten
| Female thread | DN | Length | Design | Voltage | Voltage type | Pressure AC/DC | Seal | Medium temperature | Approval | Type | Sequence |
|---|---|---|---|---|---|---|---|---|---|---|---|
| G 3/8" | 13 mm | 60 mm | Standard | 24VDC | DC | 0,2...16 bar | NBR | -10...+90 °C | CE | 21WA3K0B130-BDA08024CS-C003-32-6 | 20080001 |
| G 1/2" | 13 mm | 66 mm | - | 24VDC | DC | 0,2...16 bar | NBR | -10...+90 °C | UL/CSA/VDE | 21WA4K0B130-BDV08024CY | 20080003 |
| G 1/2" | 13 mm | 66 mm | - | 24VDC | DC | 0,2...16 bar | NBR | -10...+90 °C | CE | 21WA4K0B130-BDA08024CS | 20080004 |
| G 1/2" | 13 mm | 66 mm | - | 230V/50Hz-240V/60Hz | AC | 0,2...16 bar | NBR | -10...+90 °C | UL/CSA/VDE | 21WA4K0B130-BDV08230AY | 20080005 |
| G 1/2" | 13 mm | 66 mm | Standard | 12VDC | DC | 0,2...16 bar | NBR | -10...+90 °C | CE | 21WA4K0B130-BDA08012CS-C003-32-6 | 20080006 |
| G 1/2" | 13 mm | 66 mm | Standard | 24VDC | DC | 0,2...16 bar | NBR | -10...+90 °C | UL/CSA/VDE | 21WA4K0B130-BDV08024CY-C003-32-6 | 20080007 |
| G 1/2" | 13 mm | 66 mm | Standard | 24VDC | DC | 0,2...16 bar | NBR | -10...+90 °C | CE | 21WA4K0B130-BDA08024CS-C003-32-6 | 20080008 |
| G 1/2" | 13 mm | 66 mm | Standard | 24V/50-60Hz | AC | 0,2...16 bar | NBR | -10...+90 °C | CE | 21WA4K0B130-BDA08024DS-C003-32-6 | 20080009 |
| G 1/2" | 13 mm | 66 mm | Standard | 42V/50Hz | AC | 0,2...16 bar | NBR | -10...+90 °C | CE | 21WA4K0B130-BDA08042AS-C003-32-6 | 20080010 |
| G 1/2" | 13 mm | 66 mm | Standard | 48V/50Hz | AC | 0,2...16 bar | NBR | -10...+90 °C | CE | 21WA4K0B130-BDA08048AS-C003-32-6 | 20080011 |
| G 1/2" | 13 mm | 66 mm | Standard | 110VDC | DC | 0,2...16 bar | NBR | -10...+90 °C | CE | 21WA4K0B130-BDA08110CS-C003-32-6 | 20080012 |
| G 1/2" | 13 mm | 66 mm | Standard | 110V/50-60Hz | AC | 0,2...16 bar | NBR | -10...+90 °C | CE | 21WA4K0B130-BDA08110DS-C003-32-6 | 20080013 |
| G 1/2" | 13 mm | 66 mm | Standard | 230V/50Hz-240V/60Hz | AC | 0,2...16 bar | NBR | -10...+90 °C | UL/CSA/VDE | 21WA4K0B130-BDV08230AY-C003-32-6 | 20080015 |
| G 1/2" | 13 mm | 66 mm | Standard | 220-230V/50-60Hz | AC | 0,2...16 bar | NBR | -10...+90 °C | CE | 21WA4K0B130-BDA08223DS-C003-32-6 | 20080016 |
| G 1/2" | 13 mm | 66 mm | ATEX | - | - | 0,2...16 bar | NBR | -10...+90 °C | - | 21WA4K0B130-Y224VDC-2 | 20080017 |
| G 1/2" | 13 mm | 66 mm | ATEX | - | - | 0,2...16 bar | NBR | -10...+90 °C | - | 21WA4K0B130-Y1220-240V/50-60HZ-2 | 20080018 |
| G 1/2" | 13 mm | 66 mm | With moulded PVC-cable (2 m) | 12VDC | DC | 0,2...16 bar | NBR | -10...+90 °C | CE | 21WA4K0B130-BDA08012CS-C003-31-CV20-6 | 20080019 |
| G 1/2" | 13 mm | 66 mm | With moulded PVC-cable (2 m) | 24VDC | DC | 0,2...16 bar | NBR | -10...+90 °C | CE | 21WA4K0B130-BDA08024CS-C003-31-CV20-6 | 20080020 |
| G 1/2" | 13 mm | 66 mm | With moulded PVC-cable (2 m) | 24V/50-60Hz | AC | 0,2...16 bar | NBR | -10...+90 °C | CE | 21WA4K0B130-BDA08024DS-C003-31-CV20-6 | 20080021 |
| G 1/2" | 13 mm | 66 mm | With moulded PVC-cable (2 m) | 42V/50Hz | AC | 0,2...16 bar | NBR | -10...+90 °C | CE | 21WA4K0B130-BDA08042AS-C003-31-CV20-6 | 20080022 |
| G 1/2" | 13 mm | 66 mm | With moulded PVC-cable (2 m) | 48V/50Hz | AC | 0,2...16 bar | NBR | -10...+90 °C | CE | 21WA4K0B130-BDA08048AS-C003-31-CV20-6 | 20080023 |
| G 1/2" | 13 mm | 66 mm | With moulded PVC-cable (2 m) | 110VDC | DC | 0,2...16 bar | NBR | -10...+90 °C | CE | 21WA4K0B130-BDA08110CS-C003-31-CV20-6 | 20080024 |
| G 1/2" | 13 mm | 66 mm | With moulded PVC-cable (2 m) | 110V/50-60Hz | AC | 0,2...16 bar | NBR | -10...+90 °C | CE | 21WA4K0B130-BDA08110DS-C003-31-CV20-6 | 20080025 |
| G 1/2" | 13 mm | 66 mm | With moulded PVC-cable (2 m) | 220-230V/50-60Hz | AC | 0,2...16 bar | NBR | -10...+90 °C | CE | 21WA4K0B130-BDA08223DS-C003-31-CV20-6 | 20080026 |
| G 1/2" | 13 mm | 66 mm | With integrated LED-yellow and VDR | 12VDC | DC | 0,2...16 bar | NBR | -10...+90 °C | CE | 21WA4K0B130-BDA08012CS-C003-32-LV-2 | 20080027 |
| G 1/2" | 13 mm | 66 mm | With integrated LED-yellow and VDR | 24VDC | DC | 0,2...16 bar | NBR | -10...+90 °C | CE | 21WA4K0B130-BDA08024CS-C003-32-LV-2 | 20080028 |
| G 1/2" | 13 mm | 66 mm | With integrated LED-yellow and VDR | 24V/50-60Hz | AC | 0,2...16 bar | NBR | -10...+90 °C | CE | 21WA4K0B130-BDA08024DS-C003-32-LV-2 | 20080029 |
| G 1/2" | 13 mm | 66 mm | With integrated LED-yellow and VDR | 110VDC | DC | 0,2...16 bar | NBR | -10...+90 °C | CE | 21WA4K0B130-BDA08110CS-C003-32-LV-1 | 20080030 |
| G 1/2" | 13 mm | 66 mm | With integrated LED-yellow and VDR | 110V/50-60Hz | AC | 0,2...16 bar | NBR | -10...+90 °C | CE | 21WA4K0B130-BDA08110DS-C003-32-LV-1 | 20080031 |
| G 1/2" | 13 mm | 66 mm | With integrated LED-yellow and VDR | 230V/50Hz-240V/60Hz | AC | 0,2...16 bar | NBR | -10...+90 °C | UL/CSA/VDE | 21WA4K0B130-BDV08230AY-C003-32-LV-1 | 20080032 |
| G 1/2" | 13 mm | 66 mm | With integrated LED-yellow and VDR | 220-230V/50-60Hz | AC | 0,2...16 bar | NBR | -10...+90 °C | CE | 21WA4K0B130-BDA08223DS-C003-32-LV-1 | 20080033 |
| G 3/4" | 19 mm | 104 mm | - | 24VDC | DC | 0,2...16 bar | NBR | -10...+90 °C | UL/CSA/VDE | 21W3KB190-BDV08024CY | 20080035 |
| G 3/4" | 19 mm | 104 mm | - | 230V/50Hz-240V/60Hz | AC | 0,2...16 bar | NBR | -10...+90 °C | UL/CSA/VDE | 21W3KB190-BDV08230AY | 20080036 |
| G 3/4" | 19 mm | 104 mm | - | 220-230V/50-60Hz | AC | 0,2...16 bar | NBR | -10...+90 °C | CE | 21W3KB190-BDA08223DS | 20080037 |
| G 3/4" | 19 mm | 104 mm | Standard | 12VDC | DC | 0,2...16 bar | NBR | -10...+90 °C | CE | 21W3KB190-BDA08012CS-C003-32-6 | 20080038 |
| G 3/4" | 19 mm | 104 mm | Standard | 24VDC | DC | 0,2...16 bar | NBR | -10...+90 °C | UL/CSA/VDE | 21W3KB190-BDV08024CY-C003-32-6 | 20080039 |
