controlat direct; NC; corp, Tub de ghidare alamă; sigiliu NBR; temperatura mediului -10...+90°C; Bobină standard BDA; latime conector 32mm
Supapă electromagnetică cu 2/2 căi serie SL001 -
controlat direct; NC; corp alamă; Tub de ghidare otel inoxidabil intreaga; sigiliu FKM; temperatura mediului -10...+120°C; Bobină standard BDA; latime conector 32mm
Supapă electromagnetică cu 2/2 căi serie 21A.K -
controlat direct; NO; corp alamă; Tub de ghidare otel inoxidabil intreaga; sigiliu FKM; temperatura mediului -10...+120°C; latime conector 32mm
Supapă electromagnetică cu 2/2 căi serie 21A.Z -
controlat direct; NC; corp alamă; Tub de ghidare otel inoxidabil intreaga; cu control al debitului; Bobină standard BDV; latime conector 32mm
Supapă electromagnetică cu 2/2 căi serie 21A16 -
controlat direct; NC; corp otel inoxidabil 1.4401; Tub de ghidare otel inoxidabil intreaga; sigiliu FKM; temperatura mediului -10...+120°C; Bobină standard BDA; latime conector 32mm
Supapă electromagnetică cu 2/2 căi serie 21L -
controlat direct; NC; corp otel inoxidabil 1.4401; Tub de ghidare otel inoxidabil intreaga; sigiliu FKM; temperatura mediului -10...+120°C; cu control al debitului lateral; Bobină standard BDA; latime conector 32mm
Supapă electromagnetică cu 2/2 căi serie 21L
|

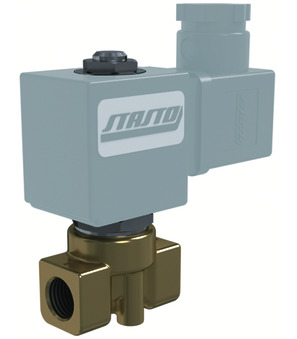

Supapă electromagnetică cu 2/2 căi serie 21A.Kcontrolat direct; NC; corp alamă; Tub de ghidare otel inoxidabil intreaga; sigiliu FKM; temperatura mediului -10...+120°C; Bobină standard BDA; latime conector 32mm
|
Grundversion
| filet mama | DN | lungime | pres. AC | pres. DC | sigiliu | temperatura mediului | Tensiune | Tipul de tensiune | conducere | Autorizare | tip bobină 2 | Tip | Secvență |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| G 1/8" | 2,0 mm | 40 mm | 0...22 bar | 0...16 bar | FKM | -10...+120 °C | - | - | - | - | - | 21A3KV20 | 20050000 |
| G 1/8" | 3 mm | 40 mm | 0...10 bar | 0...6 bar | FKM | -10...+120 °C | - | - | - | - | - | 21A3KV30 | 20050001 |
| G 1/4" | 2,0 mm | 40 mm | 0...22 bar | 0...16 bar | FKM | -10...+120 °C | - | - | - | - | - | 21A2KV20 | 20050002 |
| G 1/4" | 2,5 mm | 40 mm | 0...14 bar | 0...9 bar | FKM | -10...+120 °C | - | - | - | - | - | 21A2KV25 | 20050003 |
| G 1/4" | 3 mm | 40 mm | 0...10 bar | 0...6 bar | FKM | -10...+120 °C | - | - | - | - | - | 21A2KV30 | 20050004 |
| G 1/4" | 4,5 mm | 40 mm | 0...5 bar | 0...2 bar | FKM | -10...+120 °C | - | - | - | - | - | 21A2KV45 | 20050005 |
| G 1/4" | 5,5 mm | 40 mm | 0...3 bar | 0...1 bar | FKM | -10...+120 °C | - | - | - | - | - | 21A2KV55 | 20050007 |
| G 1/4" | 5,5 mm | 40 mm | 0...5 bar | 0...10 bar | FKM | -10...+140 °C | - | - | - | - | - | 21A2KV55-GDV | 20050008 |
| G 3/8" | 4,5 mm | 46 mm | 0...5 bar | 0...2 bar | FKM | -10...+120 °C | - | - | - | - | - | 21A5KV45 | 20050159 |
| G 1/2" | 4,5 mm | 58 mm | 0...5 bar | 0...2 bar | FKM | -10...+120 °C | - | - | - | - | - | 21A8KV45 | 20050185 |
| G 1/2" | 5,5 mm | 58 mm | 0...3 bar | 0...1 bar | FKM | -10...+120 °C | - | - | - | - | - | 21A8KV55 | 20050189 |
Varianten
| filet mama | DN | lungime | pres. AC | pres. DC | sigiliu | temperatura mediului | Tensiune | Tipul de tensiune | conducere | Autorizare | tip bobină 2 | Tip | Secvență |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| G 1/8" | 2,0 mm | 40 mm | 0...22 bar | 0...16 bar | FKM | -10...+120 °C | 12VDC | DC | Standard | CE | - | 21A3KV20-BDA08012CS-C003-32-6 | 20050006 |
| G 1/8" | 2,0 mm | 40 mm | 0...22 bar | 0...16 bar | FKM | -10...+120 °C | 12VDC | DC | cu cablu PVC turnat (2 m) | CE | - | 21A3KV20-BDA08012CS-C003-31-CV20-6 | 20050009 |
| G 1/8" | 2,0 mm | 40 mm | 0...22 bar | 0...16 bar | FKM | -10...+120 °C | 12VDC | DC | cu LED galben încorporat și VDR | CE | - | 21A3KV20-BDA08012CS-C003-32-LV-2 | 20050010 |
| G 1/8" | 2,0 mm | 40 mm | 0...22 bar | 0...16 bar | FKM | -10...+120 °C | 24VDC | DC | Standard | CE | - | 21A3KV20-BDA08024CS-C003-32-6 | 20050011 |
| G 1/8" | 2,0 mm | 40 mm | 0...22 bar | 0...16 bar | FKM | -10...+120 °C | 24VDC | DC | cu cablu PVC turnat (2 m) | CE | - | 21A3KV20-BDA08024CS-C003-31-CV20-6 | 20050012 |
| G 1/8" | 2,0 mm | 40 mm | 0...22 bar | 0...16 bar | FKM | -10...+120 °C | 24VDC | DC | cu LED galben încorporat și VDR | CE | - | 21A3KV20-BDA08024CS-C003-32-LV-2 | 20050013 |
| G 1/8" | 2,0 mm | 40 mm | 0...22 bar | 0...16 bar | FKM | -10...+120 °C | 24V/50-60Hz | AC | Standard | CE | - | 21A3KV20-BDA08024DS-C003-32-6 | 20050014 |
| G 1/8" | 2,0 mm | 40 mm | 0...22 bar | 0...16 bar | FKM | -10...+120 °C | 24V/50-60Hz | AC | cu cablu PVC turnat (2 m) | CE | - | 21A3KV20-BDA08024DS-C003-31-CV20-6 | 20050015 |
| G 1/8" | 2,0 mm | 40 mm | 0...22 bar | 0...16 bar | FKM | -10...+120 °C | 24V/50-60Hz | AC | cu LED galben încorporat și VDR | CE | - | 21A3KV20-BDA08024DS-C003-32-LV-2 | 20050016 |
| G 1/8" | 2,0 mm | 40 mm | 0...22 bar | 0...16 bar | FKM | -10...+120 °C | 42V/50Hz | AC | Standard | CE | - | 21A3KV20-BDA08042AS-C003-32-6 | 20050017 |
| G 1/8" | 2,0 mm | 40 mm | 0...22 bar | 0...16 bar | FKM | -10...+120 °C | 42V/50Hz | AC | cu cablu PVC turnat (2 m) | CE | - | 21A3KV20-BDA08042AS-C003-31-CV20-6 | 20050018 |
| G 1/8" | 2,0 mm | 40 mm | 0...22 bar | 0...16 bar | FKM | -10...+120 °C | 48V/50Hz | AC | Standard | CE | - | 21A3KV20-BDA08048AS-C003-32-6 | 20050019 |
| G 1/8" | 2,0 mm | 40 mm | 0...22 bar | 0...16 bar | FKM | -10...+120 °C | 48V/50Hz | AC | cu cablu PVC turnat (2 m) | CE | - | 21A3KV20-BDA08048AS-C003-31-CV20-6 | 20050020 |
| G 1/8" | 2,0 mm | 40 mm | 0...22 bar | 0...16 bar | FKM | -10...+120 °C | 110VDC | DC | Standard | CE | - | 21A3KV20-BDA08110CS-C003-32-6 | 20050021 |
| G 1/8" | 2,0 mm | 40 mm | 0...22 bar | 0...16 bar | FKM | -10...+120 °C | 110VDC | DC | cu cablu PVC turnat (2 m) | CE | - | 21A3KV20-BDA08110CS-C003-31-CV20-6 | 20050022 |
| G 1/8" | 2,0 mm | 40 mm | 0...22 bar | 0...16 bar | FKM | -10...+120 °C | 110VDC | DC | cu LED galben încorporat și VDR | CE | - | 21A3KV20-BDA08110CS-C003-32-LV-1 | 20050023 |
| G 1/8" | 2,0 mm | 40 mm | 0...22 bar | 0...16 bar | FKM | -10...+120 °C | 110V/50-60Hz | AC | Standard | CE | - | 21A3KV20-BDA08110DS-C003-32-6 | 20050024 |
| G 1/8" | 2,0 mm | 40 mm | 0...22 bar | 0...16 bar | FKM | -10...+120 °C | 110V/50-60Hz | AC | cu cablu PVC turnat (2 m) | CE | - | 21A3KV20-BDA08110DS-C003-31-CV20-6 | 20050025 |
| G 1/8" | 2,0 mm | 40 mm | 0...22 bar | 0...16 bar | FKM | -10...+120 °C | 110V/50-60Hz | AC | cu LED galben încorporat și VDR | CE | - | 21A3KV20-BDA08110DS-C003-32-LV-1 | 20050026 |
| G 1/8" | 2,0 mm | 40 mm | 0...22 bar | 0...16 bar | FKM | -10...+120 °C | 220-230V/50-60Hz | AC | Standard | CE | - | 21A3KV20-BDA08223DS-C003-32-6 | 20050027 |
| G 1/8" | 2,0 mm | 40 mm | 0...22 bar | 0...16 bar | FKM | -10...+120 °C | 220-230V/50-60Hz | AC | cu cablu PVC turnat (2 m) | CE | - | 21A3KV20-BDA08223DS-C003-31-CV20-6 | 20050028 |
| G 1/8" | 2,0 mm | 40 mm | 0...22 bar | 0...16 bar | FKM | -10...+120 °C | 220-230V/50-60Hz | AC | cu LED galben încorporat și VDR | CE | - | 21A3KV20-BDA08223DS-C003-32-LV-1 | 20050029 |
| G 1/8" | 3 mm | 40 mm | 0...10 bar | 0...6 bar | FKM | -10...+120 °C | 12VDC | DC | Standard | CE | - | 21A3KV30-BDA08012CS-C003-32-6 | 20050030 |
| G 1/8" | 3 mm | 40 mm | 0...10 bar | 0...6 bar | FKM | -10...+120 °C | 12VDC | DC | cu cablu PVC turnat (2 m) | CE | - | 21A3KV30-BDA08012CS-C003-31-CV20-6 | 20050031 |
| G 1/8" | 3 mm | 40 mm | 0...10 bar | 0...6 bar | FKM | -10...+120 °C | 12VDC | DC | cu LED galben încorporat și VDR | CE | - | 21A3KV30-BDA08012CS-C003-32-LV-2 | 20050032 |
| G 1/8" | 3 mm | 40 mm | 0...10 bar | 0...6 bar | FKM | -10...+120 °C | 24VDC | DC | Standard | CE | - | 21A3KV30-BDA08024CS-C003-32-6 | 20050033 |
| G 1/8" | 3 mm | 40 mm | 0...10 bar | 0...6 bar | FKM | -10...+120 °C | 24VDC | DC | cu cablu PVC turnat (2 m) | CE | - | 21A3KV30-BDA08024CS-C003-31-CV20-6 | 20050034 |
| G 1/8" | 3 mm | 40 mm | 0...10 bar | 0...6 bar | FKM | -10...+120 °C | 24VDC | DC | cu LED galben încorporat și VDR | CE | - | 21A3KV30-BDA08024CS-C003-32-LV-2 | 20050035 |
| G 1/8" | 3 mm | 40 mm | 0...10 bar | 0...6 bar | FKM | -10...+120 °C | 24V/50-60Hz | AC | Standard | CE | - | 21A3KV30-BDA08024DS-C003-32-6 | 20050036 |
