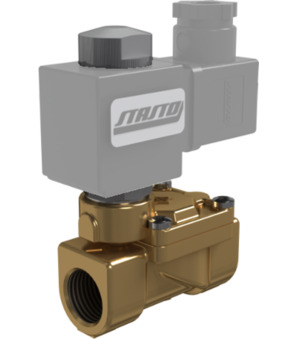

SL012-10-BDV08024CY-C003-31-CV20-6

Price.

1.981,30 lei
2/2-way solenoid valve Series SL012 Store
  1. Products
  2. Armatures
  3. Solenoid valves for liquids and gases
  4. 2/2-way solenoid valves - pilot operated
  5. 2/2-way solenoid valve Series SL012
  6. SL012-10-BDV08024CY-C003-31-CV20-6
SL012-10-BDV08024CY-C003-31-CV20-6
2/2-way solenoid valve 21PW4K0T120
2/2-way solenoid valve 21PW4K0T120
596,70 lei
596,70 lei
21PW4K0T120-BDA08024DS-C003-31-CV20-6
21PW4K0T120-BDA08024DS-C003-31-CV20-6
779,30 lei
779,30 lei

SL012-10-BDV08024CY-C003-31-CV20-6

SL012-10
2/2-way solenoid valve Series SL012; Pilot-operated; NC; Piston type; Body Brass; Tube Stainless steel One-piece; Seal Fibre-glass-reinforced PTFE; Medium temperature -40...+180°C; Standard coil BDV; Connector size 32mm; G 1"; DN 25mm; Pressure AC/DC 0,9-10bar; Length 93mm
BDV08024CY
Coil Type BDV; For humid area; Approval CSA/UL/VDE; Connector size 32mm; Voltage 24VDC
C003-31-CV20-6
Connector; Connector size 32mm; With moulded PVC-cable (2 m); Voltage 0...250VAC/DC

Intrastat No.: 84818099
Country of origin: Italy
Weight: 1.59 Kg
Short Itemnumber:SL01210BDV08024CYC00331CV206
https://www.stasto.ro/web/image/product.template/192793/image_1920?unique=c5de58b

SL012-10
2/2-way solenoid valve series SL012; pilot-operated; NC; piston type; body brass; tube stainless steel one-piece; seal fibre-glass-reinforced PTFE; medium temperature -40...+180°C; standard coil BDV; connector size 32mm; G 1"; DN 25mm; pressure AC/DC 0,9-10bar; length 93mm
BDV08024CY
coil type BDV; for humid area; approval CSA/UL/VDE; connector size 32mm; voltage 24VDC
C003-31-CV20-6
connector; connector size 32mm; with moulded PVC-cable (2 m); voltage 0...250VAC/DC

1.981,30 lei 1981.3 RON 1.981,30 lei

Not Available For Sale

  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Pressure AC/DC
  • Coil
  • Approval

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 1"
DN 25 mm
Length 93 mm
Designs
Connector size 32 mm
design
Design With moulded PVC-cable (2 m)
Electrical key figures
Voltage 24VDC
Voltage type DC
pressure
Pressure AC/DC 0,9...10 bar
characteristics
Coil BDV
Approval UL/CSA/VDE
