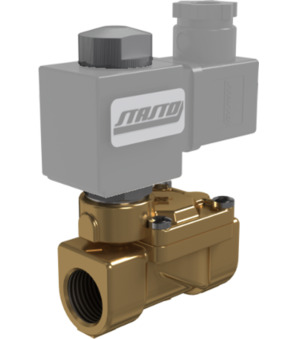

2/2-way solenoid valve Series SL012

2/2-way solenoid valves - pilot operated

Store

Category

Guide

Pilot-operated; NC; Body Brass; Seal NBR; Medium temperature -10...+90°C; Standard coil BDA; Connector size 32mm

2/2-way solenoid valve Series SL200, 21H

Pilot-operated; NC; Body Brass; Tube Stainless steel One-piece; Seal NBR; Medium temperature -10...+90°C; Standard coil BDA; Connector size 32mm

2/2-way solenoid valve Series 21W, 21WA

Pilot-operated; NC; Body Brass; Tube Stainless steel One-piece; Seal NBR; Medium temperature -10...+90°C; With adjustable closing delay; Manual operation; Standard coil BDA; Connector size 32mm

2/2-way solenoid valve Series 21W-MR

Pilot-operated; NO; Body Brass; Tube Stainless steel One-piece; Seal NBR; Medium temperature -10...+90°C; Standard coil BDA; Connector size 32mm

2/2-way solenoid valve Series 21W-NO, 21WA-NO

Pilot-operated; NC; Piston type; Body Brass; Tube Stainless steel One-piece; Seal Fibre-glass-reinforced PTFE; Medium temperature -40...+180°C; Standard coil BDV; Connector size 32mm

2/2-way solenoid valve Series SL012

Pilot-operated; Relief valve for compressors; Body Brass; Stainless steel tube with soldered hexagon made of brass; Seal PTFE/FKM; Medium temperature -10...+120°C; Connector size 32mm

2/2-way solenoid valve Series 21PW

Pilot-operated; NC; Body Stainless steel 1.4401; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Standard coil BDA; Connector size 32mm

2/2-way solenoid valve Series 21X

Female thread

Loading...
DN

Loading...
Design

Loading...
Voltage

Loading...
Keywords
- Verpackungsmaterial/EPR-Recycling

Reset

Pilot-operated; NC; Piston type; Body Brass; Tube Stainless steel One-piece; Seal Fibre-glass-reinforced PTFE; Medium temperature -40...+180°C; Standard coil BDV; Connector size 32mm

Grundversion

Female thread	DN	Length	Pressure AC/DC	Voltage	Approval	Design	Voltage type	Type	Sequence
G 1/2"	13 mm	65 mm	0,9...10 bar	-	-	-	-	SL012-12	20110000
G 3/4"	19 mm	74 mm	0,9...10 bar	-	-	-	-	SL012-34	20110013
G 1"	25 mm	93 mm	0,9...10 bar	-	-	-	-	SL012-10	20110027

Varianten

Female thread	DN	Length	Pressure AC/DC	Voltage	Approval	Design	Voltage type	Type	Sequence
G 1/2"	13 mm	65 mm	0,9...10 bar	24VDC	UL/CSA/VDE	Standard	DC	SL012-12-BDV08024CY-C003-32-6	20110001
G 1/2"	13 mm	65 mm	0,9...10 bar	24VDC	UL/CSA/VDE	With moulded PVC-cable (2 m)	DC	SL012-12-BDV08024CY-C003-31-CV20-6	20110002
G 1/2"	13 mm	65 mm	0,9...10 bar	24VDC	UL/CSA/VDE	With integrated LED-yellow and VDR	DC	SL012-12-BDV08024CY-C003-32-LV-2	20110003
G 1/2"	13 mm	65 mm	0,9...10 bar	24V/50-60Hz	UL/CSA/VDE	Standard	AC	SL012-12-BDV08024DY-C003-32-6	20110004
G 1/2"	13 mm	65 mm	0,9...10 bar	24V/50-60Hz	UL/CSA/VDE	With moulded PVC-cable (2 m)	AC	SL012-12-BDV08024DY-C003-31-CV20-6	20110005
G 1/2"	13 mm	65 mm	0,9...10 bar	24V/50-60Hz	UL/CSA/VDE	With integrated LED-yellow and VDR	AC	SL012-12-BDV08024DY-C003-32-LV-2	20110006
G 1/2"	13 mm	65 mm	0,9...10 bar	110V/50Hz, 120V/60Hz	UL/CSA/VDE	Standard	AC	SL012-12-BDV08110AY-C003-32-6	20110007
G 1/2"	13 mm	65 mm	0,9...10 bar	110V/50Hz, 120V/60Hz	UL/CSA/VDE	With moulded PVC-cable (2 m)	AC	SL012-12-BDV08110AY-C003-31-CV20-6	20110008
G 1/2"	13 mm	65 mm	0,9...10 bar	110V/50Hz, 120V/60Hz	UL/CSA/VDE	With integrated LED-yellow and VDR	AC	SL012-12-BDV08110AY-C003-32-LV-1	20110009
G 1/2"	13 mm	65 mm	0,9...10 bar	230V/50Hz-240V/60Hz	UL/CSA/VDE	Standard	AC	SL012-12-BDV08230AY-C003-32-6	20110010
G 1/2"	13 mm	65 mm	0,9...10 bar	230V/50Hz-240V/60Hz	UL/CSA/VDE	With moulded PVC-cable (2 m)	AC	SL012-12-BDV08230AY-C003-31-CV20-6	20110011
G 1/2"	13 mm	65 mm	0,9...10 bar	230V/50Hz-240V/60Hz	UL/CSA/VDE	With integrated LED-yellow and VDR	AC	SL012-12-BDV08230AY-C003-32-LV-1	20110012
G 3/4"	19 mm	74 mm	0,9...10 bar	24VDC	UL/CSA/VDE	Standard	DC	SL012-34-BDV08024CY-C003-32-6	20110014
G 3/4"	19 mm	74 mm	0,9...10 bar	24VDC	UL/CSA/VDE	With moulded PVC-cable (2 m)	DC	SL012-34-BDV08024CY-C003-31-CV20-6	20110015
G 3/4"	19 mm	74 mm	0,9...10 bar	24VDC	UL/CSA/VDE	With integrated LED-yellow and VDR	DC	SL012-34-BDV08024CY-C003-32-LV-2	20110016
G 3/4"	19 mm	74 mm	0,9...10 bar	24V/50-60Hz	UL/CSA/VDE	Standard	AC	SL012-34-BDV08024DY-C003-32-6	20110017
G 3/4"	19 mm	74 mm	0,9...10 bar	24V/50-60Hz	UL/CSA/VDE	With moulded PVC-cable (2 m)	AC	SL012-34-BDV08024DY-C003-31-CV20-6	20110018
G 3/4"	19 mm	74 mm	0,9...10 bar	24V/50-60Hz	UL/CSA/VDE	With integrated LED-yellow and VDR	AC	SL012-34-BDV08024DY-C003-32-LV-2	20110019
G 3/4"	19 mm	74 mm	0,9...10 bar	110V/50Hz, 120V/60Hz	UL/CSA/VDE	Standard	AC	SL012-34-BDV08110AY-C003-32-6	20110021
G 3/4"	19 mm	74 mm	0,9...10 bar	110V/50Hz, 120V/60Hz	UL/CSA/VDE	With moulded PVC-cable (2 m)	AC	SL012-34-BDV08110AY-C003-31-CV20-6	20110022
G 3/4"	19 mm	74 mm	0,9...10 bar	110V/50Hz, 120V/60Hz	UL/CSA/VDE	With integrated LED-yellow and VDR	AC	SL012-34-BDV08110AY-C003-32-LV-1	20110023
G 3/4"	19 mm	74 mm	0,9...10 bar	230V/50Hz-240V/60Hz	UL/CSA/VDE	Standard	AC	SL012-34-BDV08230AY-C003-32-6	20110024
G 3/4"	19 mm	74 mm	0,9...10 bar	230V/50Hz-240V/60Hz	UL/CSA/VDE	With moulded PVC-cable (2 m)	AC	SL012-34-BDV08230AY-C003-31-CV20-6	20110025
G 3/4"	19 mm	74 mm	0,9...10 bar	230V/50Hz-240V/60Hz	UL/CSA/VDE	With integrated LED-yellow and VDR	AC	SL012-34-BDV08230AY-C003-32-LV-1	20110026
G 1"	25 mm	93 mm	0,9...10 bar	24VDC	UL/CSA/VDE	-	DC	SL012-10-BDV08024CY	20110028
G 1"	25 mm	93 mm	0,9...10 bar	24VDC	UL/CSA/VDE	Standard	DC	SL012-10-BDV08024CY-C003-32-6	20110029
G 1"	25 mm	93 mm	0,9...10 bar	24VDC	UL/CSA/VDE	With moulded PVC-cable (2 m)	DC	SL012-10-BDV08024CY-C003-31-CV20-6	20110030
G 1"	25 mm	93 mm	0,9...10 bar	24VDC	UL/CSA/VDE	With integrated LED-yellow and VDR	DC	SL012-10-BDV08024CY-C003-32-LV-2	20110031
G 1"	25 mm	93 mm	0,9...10 bar	24V/50-60Hz	UL/CSA/VDE	Standard	AC	SL012-10-BDV08024DY-C003-32-6	20110032
G 1"	25 mm	93 mm	0,9...10 bar	24V/50-60Hz	UL/CSA/VDE	With moulded PVC-cable (2 m)	AC	SL012-10-BDV08024DY-C003-31-CV20-6	20110033
G 1"	25 mm	93 mm	0,9...10 bar	24V/50-60Hz	UL/CSA/VDE	With integrated LED-yellow and VDR	AC	SL012-10-BDV08024DY-C003-32-LV-2	20110034
G 1"	25 mm	93 mm	0,9...10 bar	110V/50Hz, 120V/60Hz	UL/CSA/VDE	Standard	AC	SL012-10-BDV08110AY-C003-32-6	20110035
G 1"	25 mm	93 mm	0,9...10 bar	110V/50Hz, 120V/60Hz	UL/CSA/VDE	With moulded PVC-cable (2 m)	AC	SL012-10-BDV08110AY-C003-31-CV20-6	20110036
G 1"	25 mm	93 mm	0,9...10 bar	110V/50Hz, 120V/60Hz	UL/CSA/VDE	With integrated LED-yellow and VDR	AC	SL012-10-BDV08110AY-C003-32-LV-1	20110037
G 1"	25 mm	93 mm	0,9...10 bar	230V/50Hz-240V/60Hz	UL/CSA/VDE	Standard	-	SL012-10-GDV14230AY-C003-32-6	20110038
G 1"	25 mm	93 mm	0,9...10 bar	230V/50Hz-240V/60Hz	UL/CSA/VDE	Standard	AC	SL012-10-BDV08230AY-C003-32-6	20110039
G 1"	25 mm	93 mm	0,9...10 bar	230V/50Hz-240V/60Hz	UL/CSA/VDE	With moulded PVC-cable (2 m)	AC	SL012-10-BDV08230AY-C003-31-CV20-6	20110040
