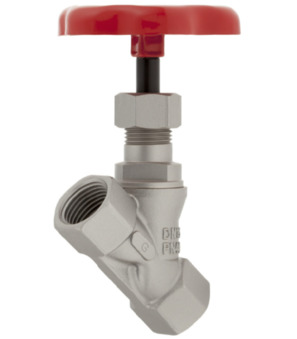

Angle seat-Globe valve Series SE27; Manual operated; Body 1.4408; Cone, Stem, Head end Stainless steel 1.4571; Handwheel Steel Plastic coated; Seat seal PTFE; Packing PTFE filled with coal; Back seal; PTFE; Rising stem; Medium temperature -30…+200°C; Pressure range 0...40bar; Thread 1/2"NPT; DN 15mm; Length 65mm
Country of origin: Germany
Weight: 0.19 Kg
Short Itemnumber: SE27N12STW
angle seat-globe valve series SE27; manual operated; body AISI 316; cone, stem, head end stainless steel AISI 316Ti; handwheel steel plastic coated; seat seal PTFE; packing PTFE filled with coal; back seal; PTFE; rising stem; medium temperature -30…+200°C; pressure range 0...40bar; thread 1/2"NPT; DN 15mm; length 65mm
Technical specifications
| Pressure range | 0...40bar |
|---|---|
| Thread | 1/2" NPT |
| DN | 15 mm |
| Length | 65 mm |
| Pressure range | 0...40bar |
| Thread | 1/2" NPT |
| DN | 15 mm |
| Length | 65 mm |
SE27-N12-STW
Documents
German / Deutsch
Data Sheets
1-
PDF
Datenblatt · Schrägsitz-Absperrventil Serie SE27 · DE
Data sheet 2,7 MB Updated 13/06/2026
English
Data Sheets
1-
PDF
Data sheet · Angle seat-Globe valve Series SE27 · EN
Data sheet 2,0 MB Updated 13/06/2026
