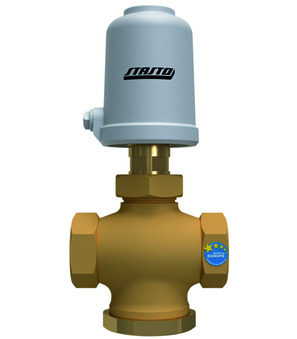

Pneumatically operated seat valve SE13-34-RT81

Pneumatically operated seat valve SE13-34-RT81

Pneumatically operated seat valve Series SE13-RT; Mixing function; 3-way-type; Body Bronze; Seal PTFE; Female thread; For gaseous media and liquids; Medium temperature -30...+170°C; RP 3/4"; DN 20mm; Operating pressure 0-16bar; Control pressure 4,2-7,2bar; Diameter Actuator 80mm

Intrastat No.: 84818079
Country of origin: Germany
Weight: 2.54 Kg
Short Itemnumber: SE1334RT81
https://www.stasto.ro/web/image/product.template/104948/image_1920?unique=3190a4b

pneumatically operated seat valve series SE13-RT; mixing function; 3-way-type; body bronze; seal PTFE; female thread; for gaseous media and liquids; medium temperature -30...+170°C; RP 3/4"; DN 20mm; operating pressure 0-16bar; control pressure 4,2-7,2bar; diameter actuator 80mm

3.994,80 lei 3994.8 RON 3.994,80 lei

Not Available For Sale

  • Female thread
  • DN
  • Diameter Actuator
  • Operating pressure
  • Control pressure
  • Medium temperature

This combination does not exist.

Availability:
Contact Us

Share

dimension
Female thread RP 3/4"
DN 20 mm
Diameter Actuator 80 mm
pressure
Operating pressure 0...16 bar
Control pressure 4,2...7,2 bar
characteristics
Medium temperature -30...+170 °C

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
2
Data sheet_Pneumatically operated seat valve Series SE10-RT_EN.pdf
Download
Data sheet_Pneumatically operated seat valve Series SE13-RT_EN.pdf
Download
CAD / 3D
1
CADSTEP_SE1334RT81.stp
Download

ZIP
Datové listy
2
Datový list_Sedlový ventil - tlakem ovládaný série SE10-RT_CS.pdf
Download
Datový list_Sedlový ventil - tlakem ovládaný série SE13-RT_CS.pdf
Download

ZIP
Data Sheets
1
Datablad_Trykstyret sædeventil Serie SE10-RT_DA_DK.pdf
Download

ZIP
Datenblätter
2
Datenblatt_Druckgesteuertes Sitzventil Serie SE10-RT_DE.pdf
Download
Datenblatt_Druckgesteuertes Sitzventil Serie SE13-RT_DE.pdf
Download

ZIP
Data Sheets
1
Δελτίο δεδομένων_Πιλοτικά ελεγχόμενη βαλβίδα έδρας υπό πίεση Σειρά SE10-RT_EL_GR.pdf
Download

ZIP
Data Sheets
1
Ficha técnica_Válvula de asiento pilotada por presión Serie SE10-RT_ES.pdf
Download

ZIP
Data Sheets
1
Tietolehti_Paineohjattu istukkaventtiili Sarja SE10-RT_FI.pdf
Download

ZIP
Data Sheets
1
Fiche technique_Soupape à siège pilotée par pression Série SE10-RT_FR.pdf
Download

ZIP
Data Sheets
1
Podatkovni list_Tlačno upravljani sjedeći ventil Serija SE10-RT_HR.pdf
Download

ZIP
Adatlapok
2
Adatlap_pneumatikusan vezérelt ülékes szelep sorozat SE10-RT_HU.pdf
Download
Adatlap_pneumatikusan vezérelt ülékes szelep sorozat SE13-RT_HU.pdf
Download

ZIP
Data Sheets
1
Scheda tecnica_Valvola a sede comandata dalla pressione Serie SE10-RT_IT.pdf
Download

ZIP
Data Sheets
1
Datablad_Trykkstyrt seteventil Serie SE10-RT_NB_NO.pdf
Download

ZIP
Data Sheets
1
Datasheet_Drukgestuurd zittingventiel Serie SE10-RT_NL.pdf
Download

ZIP
Karty katalogowe
2
Arkusz danych_zawór grzybkowy z napędem pneumatycznym Seria SE10-RT_PL.pdf
Download
Arkusz danych_zawór grzybkowy z napędem pneumatycznym Seria SE13-RT_PL.pdf
Download

ZIP
Data Sheets
1
Fișă de date_Supapă cu clapetă controlată de presiune serie SE10-RT_RO.pdf
Download

ZIP
Podatkovni listi
2
Podatkovni list_Tlačno krmiljen sedežni ventil serija SE10-RT_SL.pdf
Download
Podatkovni list_Tlačno krmiljen sedežni ventil serija SE13-RT_SL.pdf
Download

ZIP
Data Sheets
2
Tehnički list_pneumatski upravljani ventil sa sedištem serije SE10-RT_SRLATIN.pdf
Download
Tehnički list_pneumatski upravljani ventil sa sedištem serije SE13-RT_SRLATIN.pdf
Download

ZIP
Data Sheets
1
Datablad_Tryckstyrd sätesventil Serie SE10-RT_SV.pdf
Download
No spare parts are available for this product.
