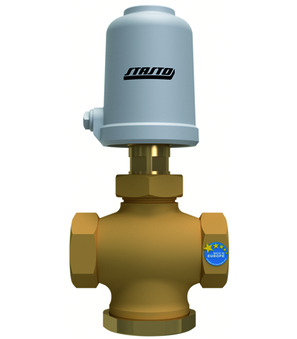

Pneumatically operated seat valve SE13-10-RT51
Pneumatically operated seat valve Series SE13-RT; Mixing function; 3-way-type; Body Bronze; Seal PTFE; Female thread; For gaseous media and liquids; Medium temperature -30...+170°C; RP 1"; DN 25mm; Operating pressure 0-1,4bar; Control pressure 4,2-9,8bar; Diameter Actuator 50mm
Intrastat No.: 84818079
Country of origin: Germany
Weight: 2.02 Kg
Short Itemnumber: SE1310RT51
Country of origin: Germany
Weight: 2.02 Kg
Short Itemnumber: SE1310RT51
pneumatically operated seat valve series SE13-RT; mixing function; 3-way-type; body bronze; seal PTFE; female thread; for gaseous media and liquids; medium temperature -30...+170°C; RP 1"; DN 25mm; operating pressure 0-1,4bar; control pressure 4,2-9,8bar; diameter actuator 50mm
| dimension | |
|---|---|
| Female thread | RP 1" |
| DN | 25 mm |
| Diameter Actuator | 50 mm |
| pressure | |
| Operating pressure | 0...1,4 bar |
| Control pressure | 4,2...9,8 bar |
| characteristics | |
| Medium temperature | -30...+170 °C |
No spare parts are available for this product.
