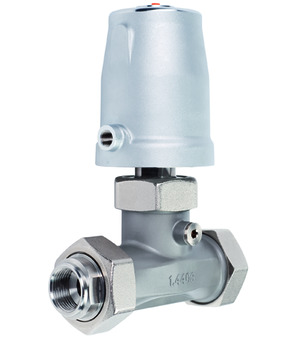

Pinch valve PI04-12-EZS-51
Pinch valve Series PI04; NO; Connection parts 1.4435; Tube EPDM Food safe; Control pressure has to be adjusted acc. to diagram in data-sheet; Medium temperature -30...+95°C; RP 1/2"; DN 15mm; Pressure range 0…6bar; Diameter Actuator 50mm
Intrastat No.: 84818079
Country of origin: Germany
Weight: 2.17 Kg
Short Itemnumber: PI0412EZS51
Country of origin: Germany
Weight: 2.17 Kg
Short Itemnumber: PI0412EZS51
pinch valve series PI04; NO; connection parts AISI 316L; tube EPDM food safe; control pressure has to be adjusted acc. to diagram in data-sheet; medium temperature -30...+95°C; RP 1/2"; DN 15mm; pressure range 0…6bar; diameter actuator 50mm
| dimension | |
|---|---|
| Female thread | RP 1/2" |
| DN | 15 mm |
| Diameter Actuator | 50 mm |
| pressure | |
| Pressure range | 0...6 bar |
No spare parts are available for this product.
