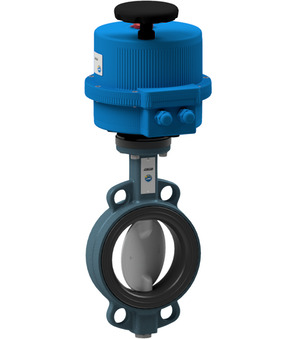

Butterfly valve with electrical actuator BUW6-065-DSES-0K2

Butterfly valve with electrical actuator BUW6-065-DSES-0K2

Butterfly valve with electrical actuator Series BUW6-DSE-02; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4401; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 65mm; Length 46mm; Operating time 9s; Voltage 24VAC/DC

Intrastat No.: 84818085
Country of origin: Italy Made in Europe
Weight: 7.04 Kg
Short Itemnumber: BUW6065DSES0K2
https://www.stasto.ro/web/image/product.template/158206/image_1920?unique=9a2e9bc

butterfly valve with electrical actuator series BUW6-DSE-02; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 316; liner EPDM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+130°C; pressure range 0...10bar; DN 65mm; length 46mm; operating time 9s; voltage 24VAC/DC

3.923,90 lei 3923.9 RON 3.923,90 lei

Not Available For Sale

excl. tax
  • DN
  • Length
  • Voltage
  • Operating time

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...10bar
DN 65 mm
Length 46 mm
Operating time 9 s
All specifications (5)
Documents
Data sheets, drawings and CAD files
Pressure range 0...10bar
DN 65 mm
Length 46 mm
Operating time 9 s
Voltage 24VAC/DC

BUW6-065-DSES-0K2

Documents

1 Documents

Language-independent
ZIP

CAD / 3D

1
BUW6-065-DSES-B x 1.0 Pcs
BUW6-065-DSES-B
Butterfly valve with free shaft end DN65, wafer, PN10/16/A150, 0-16bar body GGG40, disc and shaft 1.4408, sleeve EPDM
Electrical actuator VB060-L
VB060-L x 1.0 Pcs
Electrical actuator VB060-L
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 60Nm; Operating time 9s; Flange ISO5211 F05/F07-Stern 14 mm; Voltage 24VAC/DC; Protection class IP67
MFFALFUAL09733 x 1.0 Pcs
MFFALFUAL09733
Adapter For butterfly valve DN40-DN150; F07/F07
