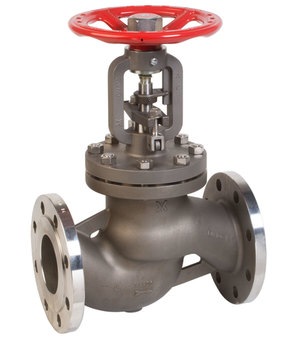

Globe valve Series GL123; PN40; Body 1.4408; Seat, Cone, Stem Stainless steel 1.4401; Handwheel Steel; Packing gland Graphite; Back seal; Metal sealing; Non rising stem; Medium temperature -10..+400°C; DN 25mm; Length 160mm; Pressure range 0...40bar; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness
Intrastat No.: 84818073
Country of origin: Italy
Short Itemnumber: GL12325W3C
Country of origin: Italy
Short Itemnumber: GL12325W3C
globe valve series GL123; PN40; body AISI 316; seat, cone, stem stainless steel AISI 316; handwheel steel; packing gland graphite; back seal; metal sealing; non rising stem; medium temperature -10..+400°C; DN 25mm; length 160mm; pressure range 0...40bar; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness
Technical specifications
| Pressure range | 0...40 bar |
|---|---|
| DN | 25 mm |
| Length | 160 mm |
| Flange | PN40 |
| Pressure range | 0...40 bar |
| DN | 25 mm |
| Length | 160 mm |
| Flange | PN40 |
No spare parts are available for this product.
