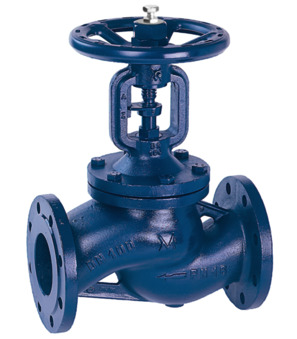

Globe valve Series GL122-W-3C; Bellow; PN16; Body Cast iron EN-GJL-250; Seat, Cone, Stem Stainless steel 1.4021; Handwheel Steel; Packing gland Graphite; Back seal; Metal sealing; Non rising stem; Medium temperature -10...+300°C; Incl. Inspection certificate EN-10204-3.1 For material, pressure, function and tightness; DN 50mm; Length 230mm; Pressure range 0…16bar
Intrastat No.: 84818071
Country of origin: Italy
Weight: 12.2 Kg
Short Itemnumber: GL12250W3C
Country of origin: Italy
Weight: 12.2 Kg
Short Itemnumber: GL12250W3C
globe valve series GL122-W-3C; bellow; PN16; body cast iron EN-GJL-250; seat, cone, stem stainless steel AISI 420; handwheel steel; packing gland graphite; back seal; metal sealing; non rising stem; medium temperature -10...+300°C; incl. inspection certificate EN-10204-3.1 for material, pressure, function and tightness; DN 50mm; length 230mm; pressure range 0…16bar
Technical specifications
| Pressure range | 0...16 bar |
|---|---|
| DN | 50 mm |
| Length | 230 mm |
| Pressure range | 0...16 bar |
| DN | 50 mm |
| Length | 230 mm |
No spare parts are available for this product.
