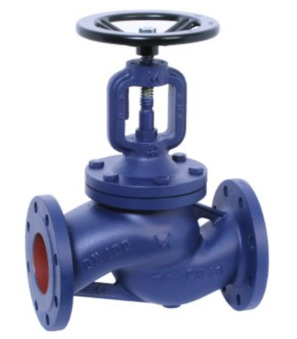

globe valve series GL119; PN16; body cast iron EN-GJL-250; seat, cone, stem stainless steel AISI 420; handwheel steel; packing gland graphite; back seal; metal sealing; rising stem; body painted RAL5013 (cobalt blue) thickness 40µm; medium temperature -10...+300°C; pressure range 0...16bar; DN 80mm; length 310mm; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness
Country of origin: Italy
Short Itemnumber: GL11980W3C
globe valve series GL119; PN16; body cast iron EN-GJL-250; seat, cone, stem stainless steel AISI 420; handwheel steel; packing gland graphite; back seal; metal sealing; rising stem; body painted RAL5013 (cobalt blue) thickness 40µm; medium temperature -10...+300°C; pressure range 0...16bar; DN 80mm; length 310mm; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness
Technical specifications
| Pressure range | 0...16bar |
|---|---|
| DN | 80 mm |
| Length | 310 mm |
| Flange | PN16 |
| Pressure range | 0...16bar |
| DN | 80 mm |
| Length | 310 mm |
| Flange | PN16 |
GL119-80-W-3C
