Globe and gate valves

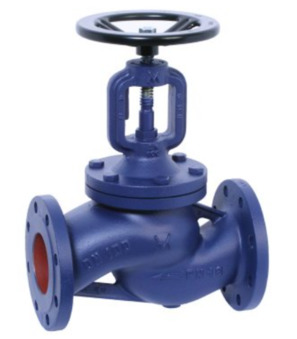

Globe valve Series GL119
PN16; Body Cast iron EN-GJL-250; Seat, Cone, Stem Stainless steel 1.4021; Handwheel Steel; Packing gland Graphite; Back seal; Metal sealing; Rising stem; Body Painted RAL5013 (Cobalt blue) Thickness 40µm; Medium temperature -10...+300°C; Pressure range 0...16bar
Data sheets, CAD files and further documents are available with the respective variant.
15Articles
Store guide
All prices exclude tax.
Grundversion
| Availability | Price | Quantity | ||||
|---|---|---|---|---|---|---|
| GL119-15-W | 15 mm | 130 mm | PN16 | 807,30 lei | ||
| GL119-15-W-01 | 15 mm | 130 mm | PN16 | 1.052,60 lei | ||
| GL119-15-W-013C | 15 mm | 130 mm | PN16 | 1.052,60 lei | ||
| GL119-20-W | 20 mm | 150 mm | PN16 | 888,90 lei | ||
| GL119-25-W | 25 mm | 160 mm | PN16 | 1.006,20 lei | ||
| GL119-32-W | 32 mm | 180 mm | PN16 | 1.107,20 lei | ||
| GL119-40-W | 40 mm | 200 mm | PN16 | 1.224,50 lei | ||
| GL119-50-W | 50 mm | 230 mm | PN16 | 1.407,60 lei | ||
| GL119-65-W | 65 mm | 290 mm | PN16 | 2.284,80 lei | ||
| GL119-80-W | 80 mm | 310 mm | PN16 | 2.460,20 lei | ||
| GL119-80-W-3C | 80 mm | 310 mm | PN16 | 2.460,20 lei | ||
| GL119-100-W | 100 mm | 350 mm | PN16 | 3.286,40 lei | ||
| GL119-125-W | 125 mm | 400 mm | PN16 | 4.464,00 lei | ||
| GL119-150-W | 150 mm | 480 mm | PN16 | 6.463,70 lei | ||
| GL119-200-W | 200 mm | 600 mm | PN16 | 12.510,30 lei |
