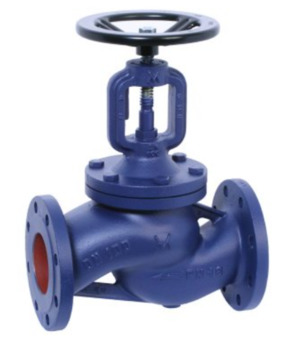

Globe valve GL119-80-W-02

Globe valve GL119-80-W-02

Globe valve Series GL119; PN16; Body Cast iron EN-GJL-250; Seat, Cone, Stem Stainless steel 1.4021; Handwheel Steel With Chain drive 10m; Packing gland Graphite; Back seal; Metal sealing; Rising stem; Body Painted RAL5013 (Cobalt blue) Thickness 40µm; Medium temperature -10...+300°C; Pressure range 0...16bar; DN 80mm; Length 310mm

Intrastat No.: 84818071
Country of origin: Italy Made in Europe
Short Itemnumber: GL11980W02
https://www.stasto.ro/web/image/product.template/179006/image_1920?unique=23ce4f8

globe valve series GL119; PN16; body cast iron EN-GJL-250; seat, cone, stem stainless steel AISI 420; handwheel steel with Chain drive 10m; packing gland graphite; back seal; metal sealing; rising stem; body painted RAL5013 (cobalt blue) thickness 40µm; medium temperature -10...+300°C; pressure range 0...16bar; DN 80mm; length 310mm

999.999,00 lei 999999.0 RON 999.999,00 lei

Not Available For Sale

excl. tax
  • DN
  • Length
  • Flange
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16bar
DN 80 mm
Length 310 mm
Flange PN16
All specifications (5)
Pressure range 0...16bar
DN 80 mm
Length 310 mm
Flange PN16
Brand STASTO
No spare parts are available for this product.
