Globe valve GL119-40-W-AC

Globe valve GL119-40-W-AC

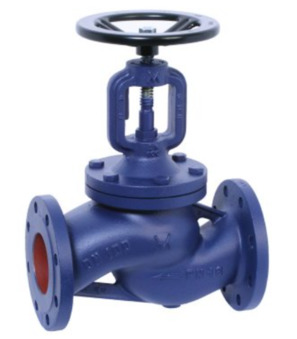

globe valve PN16; housing cast iron EN-GJL-250; seat, cone, stem stainless steel AISI 420; handwheel steel; packing gland graphite; back seal; metal sealing; rising stem; housing painted RAL5013 (cobalt blue) thickness 40µm; medium temperature -10...+300°C; pressure range 0...16bar; ATEX-design; DN 40mm; length 200mm; with control cone

Intrastat No.: 84818071
Country of origin: Italy
Short Itemnumber:GL11940WAC
https://www.stasto.ro/web/image/product.template/178083/image_1920?unique=712b185

globe valve PN16; housing cast iron EN-GJL-250; seat, cone, stem stainless steel AISI 420; handwheel steel; packing gland graphite; back seal; metal sealing; rising stem; housing painted RAL5013 (cobalt blue) thickness 40µm; medium temperature -10...+300°C; pressure range 0...16bar; ATEX-design; DN 40mm; length 200mm; with control cone

1.664,60 lei 1664.6 RON 1.664,60 lei

Not Available For Sale

  • DN
  • Length
  • Design

This combination does not exist.

Availability:
Contact Us
dimension
DN 40 mm
Length 200 mm
design
Design ATEX
