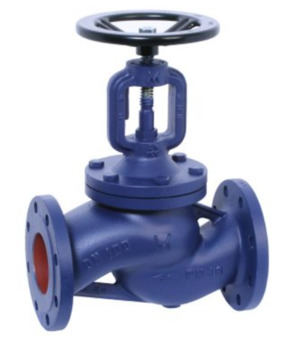

Globe valve GL119-20-W-A

Globe valve GL119-20-W-A

Globe valve Series GL119; PN16; Body Cast iron EN-GJL-250; Seat, Cone, Stem Stainless steel 1.4021; Handwheel Steel; Packing gland Graphite; Back seal; Metal sealing; Rising stem; Body Painted RAL5013 (Cobalt blue) Thickness 40µm; Medium temperature -10...+300°C; Pressure range 0...16bar; ATEX-design; DN 20mm; Length 150mm

Intrastat No.: 84818071
Country of origin: Italy
Weight: 4.5 Kg
Short Itemnumber:GL11920WA
https://www.stasto.ro/web/image/product.template/132846/image_1920?unique=712b185

globe valve series GL119; PN16; body cast iron EN-GJL-250; seat, cone, stem stainless steel AISI 420; handwheel steel; packing gland graphite; back seal; metal sealing; rising stem; body painted RAL5013 (cobalt blue) thickness 40µm; medium temperature -10...+300°C; pressure range 0...16bar; ATEX-design; DN 20mm; length 150mm

1.025,60 lei 1025.6 RON 1.025,60 lei

Not Available For Sale

  • DN
  • Length
  • Design

This combination does not exist.

Availability:
Contact Us
dimension
DN 20 mm
Length 150 mm
design
Design ATEX

Data sheets, Instructions, 3D-files and Certificates...
