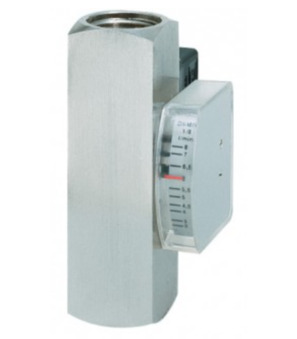

Flow monitors Series FM24; Viscosity compensated ...600mm²/s; Body Stainless steel 1.4571; For any mounting position; Medium temperature Max. 120°C; Oil scale; Application: Monitoring of lubrication; Switch unit Schließer; Connection 1/2"; Switching range 1...4L/min; Maximum pressure 300bar; U max. 250V; I max. 3A; Length 152mm
Country of origin: Germany
Weight: 1.5 Kg
Short Itemnumber: FM2412W4
Strömungswächter Serie FM24; viskositätskompensiert ...600mm²/s; Gehäuse Edelstahl 1.4571; Einbaulage beliebig; Mediumstemperatur max. 120°C; Ölskala; Anwendung: Überwachung von Schmierkreisläufen; Schaltkontakt Schließer; Anschluss 1/2"; Schaltbereich 1...4l/min; max. Druck 300bar; U max. 250V; I max. 3A; Baulänge 152mm
Technical specifications
| Connection | 1/2" |
|---|---|
| Switch unit | NO contact |
| Switching range | 1...4 l/min |
| Maximum pressure | 300 bar |
| Connection | 1/2" |
| Switch unit | NO contact |
| Switching range | 1...4 l/min |
| Maximum pressure | 300 bar |
| U max. | 250 V |
| I max. | 3 A |
| Length | 152 mm |
FM24-12-W-4
Documents
German / Deutsch
Data Sheets
1-
PDF
Datenblatt · Strömungswächter Serie FM24 · DE
Data sheet 3,0 MB Updated 13/06/2026
English
Data Sheets
1-
PDF
Data sheet · Flow monitors Series FM24 · EN
Data sheet 3,3 MB Updated 13/06/2026
