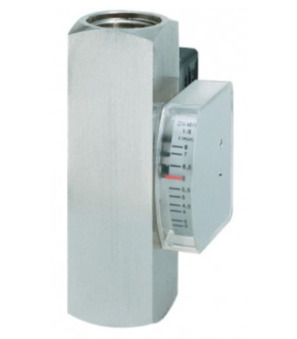

Flow monitors Schließer-1/2"-0,5...1,5-300-250-3-152
Flow monitors Series FM24; Viscosity compensated ...600mm²/s; Body Stainless steel 1.4571; For any mounting position; Medium temperature Max. 120°C; Oil scale; Application: Monitoring of lubrication; Switch unit Schließer; Connection 1/2"; Switching range 0,5...1,5L/min; Maximum pressure 300bar; U max. 250V; I max. 3A; Length 152mm
Intrastat No.: 90261081
Country of origin: Germany
Weight: 1.5 Kg
Short Itemnumber:FM2412W1.5
Country of origin: Germany
Weight: 1.5 Kg
Short Itemnumber:FM2412W1.5
Strömungswächter Serie FM24; viskositätskompensiert ...600mm²/s; Gehäuse Edelstahl 1.4571; Einbaulage beliebig; Mediumstemperatur max. 120°C; Ölskala; Anwendung: Überwachung von Schmierkreisläufen; Schaltkontakt Schließer; Anschluss 1/2"; Schaltbereich 0,5...1,5l/min; max. Druck 300bar; U max. 250V; I max. 3A; Baulänge 152mm
| dimension | |
|---|---|
| Connection | 1/2" |
| Length | 152 mm |
| function | |
| Switch unit | NO contact |
| Electrical key figures | |
| U max. | 250 V |
| I max. | 3 A |
| pressure | |
| Maximum pressure | 300 bar |
| characteristics | |
| Switching range | 0,5...1,5 l/min |
No spare parts are available for this product.
