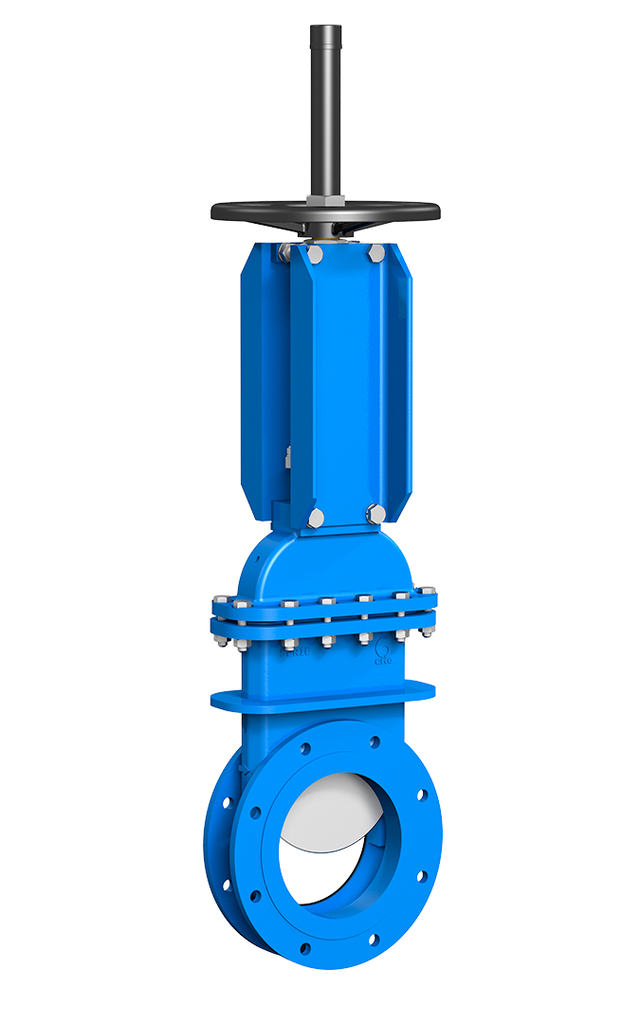

Knife gate valve with handwheel D1V2A2-5-80-B-01

Name: Knife gate valve with handwheel D1V2A2-5-80-B-01
Brand: STASTO
SKU: D1V2A2-5-80-B-01
Price: 999999.0 RON
Availability: InStock

Knife gate valve with handwheel Series D1V; Wafer type; Rising stem; Body made of carbon steel A216-WCB; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10/16/25/40; Unidirectional sealed; Medium temperature -5...+90°C; DN 80mm; Length 70mm; Pressure range 0...15bar

Intrastat No.: 84818061
Country of origin: Spain
Weight: 0.0 Kg
Short Itemnumber: D1V2A2580B01

knife gate valve with handwheel series D1V; wafer type; rising stem; body made of carbon steel A216-WCB; gate AISI 304; soft sealed EPDM; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10/16/25/40; unidirectional sealed; medium temperature -5...+90°C; DN 80mm; length 70mm; pressure range 0...15bar
