Knife gate valve

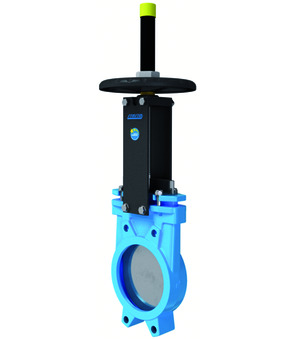

Knife gate valve with handwheel Series A1V-PIB
Wafer type; Rising stem; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Medium temperature -10...+90°C; Prepared for 2 inductive switches MSU03, MSU04, MSU05
Data sheets, CAD files and further documents are available with the respective variant.
14Articles
Store guide
All prices exclude tax.
Grundversion
| Availability | Price | Quantity | |||||
|---|---|---|---|---|---|---|---|
| A1V2H2-5-50-PIB | 50 mm | 40 mm | 0...10 bar | -5...+90 °C | 2.130,80 lei | ||
| A1V2H2-5-65-PIB | 65 mm | 40 mm | 0...10 bar | -5...+90 °C | 2.226,10 lei | ||
| A1V2H2-5-80-PIB | 80 mm | 50 mm | 0...10 bar | -5...+90 °C | 2.348,00 lei | ||
| A1V2H2-5-100-PIB | 100 mm | 50 mm | 0...10 bar | -5...+90 °C | 2.491,30 lei | ||
| A1V2H2-5-125-PIB | 125 mm | 50 mm | 0...10 bar | -5...+90 °C | 2.847,30 lei | ||
| A1V2H2-5-150-PIB | 150 mm | 60 mm | 0...10 bar | -5...+90 °C | 3.094,70 lei | ||
| A1V2H2-5-200-PIB | 200 mm | 60 mm | 0...10 bar | -5...+90 °C | 4.509,90 lei | ||
| A1V2H2-5-250-PIB | 250 mm | 70 mm | 0...10 bar | -5...+90 °C | 5.836,90 lei | ||
| A1V2H2-5-300-PIB | 300 mm | 70 mm | 0...6 bar | -5...+90 °C | 7.164,50 lei | ||
| A1V2H2-5-350-PIB | 350 mm | 96 mm | 0...6 bar | -5...+90 °C | 14.215,70 lei | ||
| A1V2H2-5-400-PIB | 400 mm | 100 mm | 0...6 bar | -5...+90 °C | 16.158,30 lei | ||
| A1V2H2-5-450-PIB | 450 mm | 106 mm | 0...5 bar | -5...+90 °C | 19.711,50 lei | ||
| A1V2H2-5-500-PIB | 500 mm | 110 mm | 0...4 bar | -5...+90 °C | 23.301,40 lei |
Varianten
| Availability | Price | Quantity | |||||
|---|---|---|---|---|---|---|---|
A1V2H2-5-250-PIB-MSU03/2
Specifications
|
10-30VDC | 250 mm | 70 mm | 0...10 bar | 999.999,00 lei |
