Knife gate valve

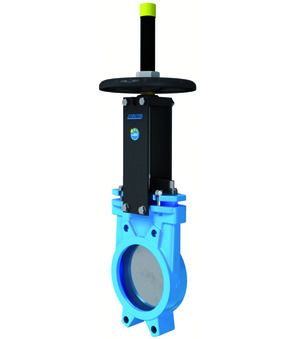

Knife gate valve with handwheel Series A1V
Wafer type; Rising stem; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Medium temperature -5...+90°C
Data sheets, CAD files and further documents are available with the respective variant.
13Articles
Store guide
All prices exclude tax.
Grundversion
| Availability | Price | Quantity | |||||
|---|---|---|---|---|---|---|---|
A1V2H2-5-50-B
Specifications
|
50 mm | 40 mm | 0...10 bar | -5...+90 °C | 2.130,80 lei | ||
A1V2H2-5-65-B
Specifications
|
65 mm | 40 mm | 0...10 bar | -5...+90 °C | 2.226,10 lei | ||
A1V2H2-5-80-B
Specifications
|
80 mm | 50 mm | 0...10 bar | -5...+90 °C | 2.348,00 lei | ||
A1V2H2-5-100-B
Specifications
|
100 mm | 50 mm | 0...10 bar | -5...+90 °C | 2.488,30 lei | ||
A1V2H2-5-125-B
Specifications
|
125 mm | 50 mm | 0...10 bar | -5...+90 °C | 2.847,30 lei | ||
A1V2H2-5-150-B
Specifications
|
150 mm | 60 mm | 0...10 bar | -5...+90 °C | 3.094,70 lei | ||
A1V2H2-5-200-B
Specifications
|
200 mm | 60 mm | 0...10 bar | -5...+90 °C | 4.509,90 lei | ||
A1V2H2-5-250-B
Specifications
|
250 mm | 70 mm | 0...10 bar | -5...+90 °C | 5.836,90 lei | ||
A1V2H2-5-300-B
Specifications
|
300 mm | 70 mm | 0...6 bar | -5...+90 °C | 7.164,50 lei | ||
A1V2H2-5-350-B
Specifications
|
350 mm | 96 mm | 0...6 bar | -5...+90 °C | 13.518,60 lei | ||
A1V2H2-5-400-B
Specifications
|
400 mm | 100 mm | 0...6 bar | -5...+90 °C | 15.461,20 lei | ||
A1V2H2-5-450-B
Specifications
|
450 mm | 106 mm | 0...5 bar | -5...+90 °C | 19.013,80 lei | ||
A1V2H2-5-500-B
Specifications
|
500 mm | 110 mm | 0...4 bar | -5...+90 °C | 22.604,20 lei |
