Butterfly valves

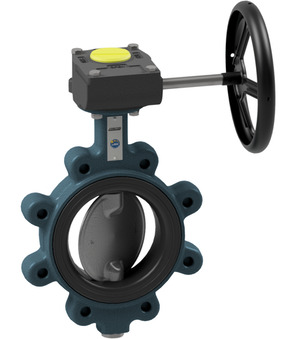

Butterfly valve with manual gear box Series BULC-G
Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10; Medium temperature -10...+130°C; Pressure range 0...10bar
Scope of delivery
butterfly valve with gear box
Data sheets, CAD files and further documents are available with the respective variant.
13Articles
Store guide
Other series
Butterfly valve with hand lever Series BUW6-DE-L
Butterfly valve with manual gear box Series BUW6-DPE-G
Butterfly valve with hand lever Series BUW6-DSE-L
Butterfly valve with manual gear box Series BUW6-DSE-G
Butterfly valve with hand lever Series BUW2-DSC-L
Butterfly valve with hand lever Series BULG-L, BULC-L
Butterfly valve with manual gear box Series BULC-G
Butterfly valve with hand lever Series BULG-L, BULC-L
Butterfly valve with manual gear box Series BULG-G, BULC-G
Butterfly valve with hand lever Series BUW6-DSD-L
Butterfly valve with hand lever Series BUW4-DSTS-L
Butterfly valve with manual gear box Series BUW4-DSTS-G
Butterfly valve with hand lever Series BUW9-CSIS-L
Butterfly valve with manual gear box Series BUW-CSIS-G
Butterfly valve with hand lever Series BUW9-SSIS-L
Butterfly valve with manual gear box Series BUW-SSIS-G
Scope of delivery
butterfly valve with gear box
All prices exclude tax.
Grundversion
| Availability | Price | Quantity | |||||
|---|---|---|---|---|---|---|---|
| BULC-200-DSE-G | 200 mm | 60 mm | — | STASTO | 4.344,20 lei | ||
| BULC-200-DSN-G-3C | 200 mm | 60 mm | — | STASTO | 4.344,20 lei | ||
| BULC-250-DSE-G | 250 mm | 68 mm | — | STASTO | 6.613,20 lei | ||
| BULC-250-DSN-G-3C | 250 mm | 68 mm | — | STASTO | 6.613,20 lei | ||
| BULA-250-DPE-G-A | 250 mm | 68 mm | ATEX | STASTO | 5.238,20 lei | ||
| BULC-300-DSE-G | 300 mm | 78 mm | — | STASTO | 8.535,40 lei | ||
| BULA-300-DPE-G-A | 300 mm | 78 mm | ATEX | STASTO | 6.385,20 lei | ||
| BULC-350-DSE-G | 350 mm | 78 mm | — | STASTO | 13.061,10 lei | ||
| BULC-350-DSN-G | 350 mm | 78 mm | — | STASTO | 13.061,10 lei | ||
| BULC-350-DSN-G-3C | 350 mm | 78 mm | — | STASTO | 13.061,10 lei | ||
| BULC-400-DSE-G | 400 mm | 102 mm | — | STASTO | 17.785,70 lei | ||
| BULC-450-DSE-G | 450 mm | 114 mm | — | STASTO | 25.154,20 lei | ||
| BULC-500-DSE-G | 500 mm | 127 mm | — | STASTO | 32.262,10 lei |
