Butterfly valves

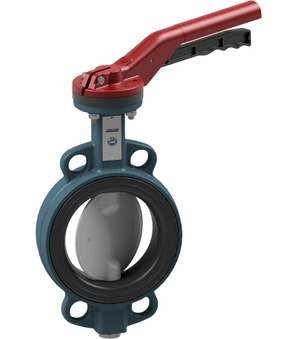

Butterfly valve with hand lever Series BUW6-DE-L
Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar
Scope of delivery
butterfly valve with hand lever made of aluminum, 10 positions
Data sheets, CAD files and further documents are available with the respective variant.
9Articles
Store guide
Other series
Butterfly valve with hand lever Series BUW6-DE-L
Butterfly valve with manual gear box Series BUW6-DPE-G
Butterfly valve with hand lever Series BUW6-DSE-L
Butterfly valve with manual gear box Series BUW6-DSE-G
Butterfly valve with hand lever Series BUW2-DSC-L
Butterfly valve with hand lever Series BULG-L, BULC-L
Butterfly valve with manual gear box Series BULC-G
Butterfly valve with hand lever Series BULG-L, BULC-L
Butterfly valve with manual gear box Series BULG-G, BULC-G
Butterfly valve with hand lever Series BUW6-DSD-L
Butterfly valve with hand lever Series BUW4-DSTS-L
Butterfly valve with manual gear box Series BUW4-DSTS-G
Butterfly valve with hand lever Series BUW9-CSIS-L
Butterfly valve with manual gear box Series BUW-CSIS-G
Butterfly valve with hand lever Series BUW9-SSIS-L
Butterfly valve with manual gear box Series BUW-SSIS-G
Scope of delivery
butterfly valve with hand lever made of aluminum, 10 positions
All prices exclude tax.
Grundversion
| Availability | Price | Quantity | |||||
|---|---|---|---|---|---|---|---|
BUW6-050-DUE-L
Specifications
|
50 mm | 43 mm | 0...16 bar | Zinc plated steel | 711,40 lei | ||
BUW6-065-DUE-L
Specifications
|
65 mm | 46 mm | 0...16 bar | Zinc plated steel | 767,00 lei | ||
BUW6-080-DUE-L
Specifications
|
80 mm | 46 mm | 0...16 bar | Zinc plated steel | 822,60 lei | ||
BUW6-100-DUE-L
Specifications
|
100 mm | 52 mm | 0...16 bar | Zinc plated steel | 933,30 lei | ||
BUW6-125-DPE-L
Specifications
|
125 mm | 56 mm | 0...16 bar | GGG40 Zinc plated | 1.035,30 lei | ||
BUW6-150-DPE-L
Specifications
|
150 mm | 56 mm | 0...16 bar | GGG40 Zinc plated | 1.194,40 lei | ||
BUW6-200-DPE-L
Specifications
|
200 mm | 60 mm | 0...16 bar | GGG40 Zinc plated | 1.905,40 lei | ||
BUW6-250-DPE-L
Specifications
|
250 mm | 68 mm | 0...16 bar | GGG40 Zinc plated | 2.799,40 lei | ||
BUW6-300-DPE-L
Specifications
|
300 mm | 78 mm | 0...16 bar | GGG40 Zinc plated | 3.274,20 lei |
