Butterfly valves

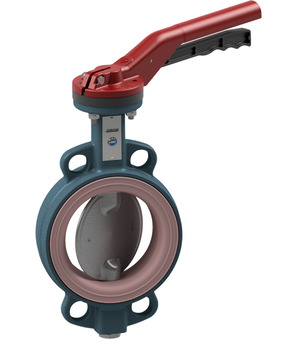

Butterfly valve with hand lever Series BUW2-DSC-L
Wafer type; Length According to EN558−1R20; For abrasive medias (e.g. sand, cement, etc.); Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner Carboxylated NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+100°C; Pressure range 0...6bar
Scope of delivery
butterfly valve with hand lever made of aluminum, 10 positions
Data sheets, CAD files and further documents are available with the respective variant.
10Articles
Store guide
Other series
Butterfly valve with hand lever Series BUW6-DE-L
Butterfly valve with manual gear box Series BUW6-DPE-G
Butterfly valve with hand lever Series BUW6-DSE-L
Butterfly valve with manual gear box Series BUW6-DSE-G
Butterfly valve with hand lever Series BUW2-DSC-L
Butterfly valve with hand lever Series BULG-L, BULC-L
Butterfly valve with manual gear box Series BULC-G
Butterfly valve with hand lever Series BULG-L, BULC-L
Butterfly valve with manual gear box Series BULG-G, BULC-G
Butterfly valve with hand lever Series BUW6-DSD-L
Butterfly valve with hand lever Series BUW4-DSTS-L
Butterfly valve with manual gear box Series BUW4-DSTS-G
Butterfly valve with hand lever Series BUW9-CSIS-L
Butterfly valve with manual gear box Series BUW-CSIS-G
Butterfly valve with hand lever Series BUW9-SSIS-L
Butterfly valve with manual gear box Series BUW-SSIS-G
Scope of delivery
butterfly valve with hand lever made of aluminum, 10 positions
All prices exclude tax.
Grundversion
| Availability | Price | Quantity | |||||
|---|---|---|---|---|---|---|---|
| BUW2-040-DSC-L | 40 mm | 33 mm | 0...6 bar | STASTO | 980,70 lei | ||
| BUW2-050-DSC-L | 50 mm | 43 mm | 0...6 bar | STASTO | 980,70 lei | ||
| BUW2-065-DSC-L | 65 mm | 46 mm | 0...6 bar | STASTO | 1.067,40 lei | ||
| BUW2-080-DSC-L | 80 mm | 46 mm | 0...6 bar | STASTO | 1.202,10 lei | ||
| BUW2-100-DSC-L | 100 mm | 52 mm | 0...6 bar | STASTO | 1.423,40 lei | ||
| BUW2-125-DSC-L | 125 mm | 56 mm | 0...6 bar | STASTO | 1.755,90 lei | ||
| BUW2-150-DSC-L | 150 mm | 56 mm | 0...6 bar | STASTO | 2.222,60 lei | ||
| BUW2-200-DSC-L | 200 mm | 60 mm | 0...6 bar | STASTO | 3.551,10 lei | ||
| BUW2-250-DSC-L | 250 mm | 68 mm | 0...6 bar | STASTO | 5.061,80 lei | ||
| BUW2-300-DSC-L | 300 mm | 78 mm | 0...6 bar | STASTO | 6.486,20 lei |
