Safety and relief valves

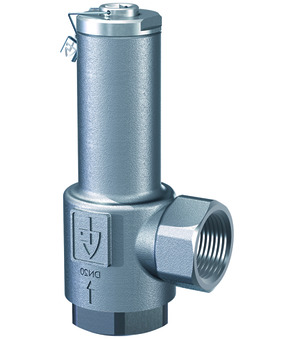

Relief valve Series RV17
Oil- and gas-proof cover; Body 1.4408; Without TÜV-inspection number
Data sheets, CAD files and further documents are available with the respective variant.
32Articles
Store guide
Other series
Relief valve Series RV01
Safety valve Series SV01
Safety valve Series SV02
Safety valve Series SV03
Safety valve Series SV04
Safety valve, full stroke Series SF01
Safety valve, full stroke Series SF01-T
Safety valve, full stroke Series SF04
Safety valve, full stroke Series SF05
Safety valve, full stroke Series SF06
Relief valve Series RV05
Relief valve Series RV05
Relief valve Series RV02-T
Relief valve Series RV02-T
Relief valve Series RV17
Relief valve Series RV06
Safety valve Series SV05
Relief valve Series RV07
Safety valve Series SV06
All prices exclude tax.
Grundversion
| Availability | Price | Quantity | |||||
|---|---|---|---|---|---|---|---|
RV17-38-10-0.5/2.5
Specifications
|
G 3/8" | 10 mm | 0,5...2,5 bar | FKM | 2.691,30 lei | ||
RV17-38-10-2/12
Specifications
|
G 3/8" | 10 mm | 2...12 bar | FKM | 2.691,30 lei | ||
RV17-38-10-2/12-T
Specifications
|
G 3/8" | 10 mm | 2...12 bar | PTFE/FKM | 2.691,30 lei | ||
RV17-38-10-12/20-T
Specifications
|
G 3/8" | 10 mm | 12...20 bar | PTFE/FKM | 2.961,10 lei | ||
RV17-12-13-0.5/2.5
Specifications
|
G 1/2" | 13 mm | 0,5...2,5 bar | FKM | 3.398,60 lei | ||
RV17-12-13-0.5/2.5-T
Specifications
|
G 1/2" | 13 mm | 0,5...2,5 bar | PTFE/FKM | 3.398,60 lei | ||
RV17-12-13-2/12
Specifications
|
G 1/2" | 13 mm | 2...12 bar | FKM | 3.399,70 lei | ||
RV17-12-13-2/12-T
Specifications
|
G 1/2" | 13 mm | 2...12 bar | PTFE/FKM | 3.398,60 lei | ||
RV17-12-13-12/20-T
Specifications
|
G 1/2" | 13 mm | 12...20 bar | PTFE/FKM | 3.740,30 lei | ||
RV17-34-19-0.5/2.5
Specifications
|
G 3/4" | 19 mm | 0,5...2,5 bar | FKM | 3.732,70 lei | ||
RV17-34-19-2/12
Specifications
|
G 3/4" | 19 mm | 2...12 bar | FKM | 3.732,70 lei | ||
RV17-34-19-2/12-T
Specifications
|
G 3/4" | 19 mm | 2...12 bar | PTFE/FKM | 4.105,00 lei | ||
RV17-34-19-12/20-T
Specifications
|
G 3/4" | 19 mm | 12...20 bar | PTFE/FKM | 4.105,00 lei | ||
RV17-10-25-0.5/2.5
Specifications
|
G 1" | 25 mm | 0,5...2,5 bar | FKM | 4.317,70 lei | ||
RV17-10-25-2/12
Specifications
|
G 1" | 25 mm | 2...12 bar | FKM | 4.317,70 lei | ||
RV17-10-25-2/12-T
Specifications
|
G 1" | 25 mm | 2...12 bar | PTFE/FKM | 4.748,60 lei | ||
RV17-10-25-12/20-T
Specifications
|
G 1" | 25 mm | 12...20 bar | PTFE/FKM | 4.748,60 lei | ||
RV17-114-30-0.5/2.5
Specifications
|
G 1 1/4" | 30 mm | 0,5...2,5 bar | FKM | 4.712,90 lei | ||
RV17-114-30-0.5/2.5-T
Specifications
|
G 1 1/4" | 30 mm | 0,5...2,5 bar | PTFE/FKM | 4.712,90 lei | ||
RV17-114-30-2/12
Specifications
|
G 1 1/4" | 30 mm | 2...12 bar | FKM | 4.712,90 lei | ||
RV68-32-30-2/8-6A
Specifications
|
G 1 1/4" | 30 mm | 2...12 bar | FKM | 999.999,00 lei | ||
RV17-114-30-2/8-T
Specifications
|
G 1 1/4" | 30 mm | 12...20 bar | PTFE/FKM | 4.712,90 lei | ||
RV17-114-30-12/20-T
Specifications
|
G 1 1/4" | 30 mm | 12...20 bar | PTFE/FKM | 5.180,60 lei | ||
RV17-112-38-0.5/2.5
Specifications
|
G 1 1/2" | 38 mm | 0,5...2,5 bar | FKM | 5.222,90 lei | ||
RV17-112-38-2/12
Specifications
|
G 1 1/2" | 38 mm | 2...12 bar | FKM | 5.222,90 lei | ||
RV17-112-38-2/12-T
Specifications
|
G 1 1/2" | 38 mm | 2...12 bar | PTFE/FKM | 5.222,90 lei | ||
RV17-112-38-12/20-T
Specifications
|
G 1 1/2" | 38 mm | 12...20 bar | PTFE/FKM | 5.797,70 lei | ||
RV68-40-38-12/20-Q
Specifications
|
G 1 1/2" | 38 mm | 12...20 bar | PTFE/FKM | 8.164,60 lei | ||
RV68-40-38-12/20-T
Specifications
|
G 1 1/2" | 38 mm | 12...20 bar | PTFE/FKM | 8.164,60 lei | ||
RV17-20-50-0.5/2.5
Specifications
|
G 2" | 50 mm | 0,5...2,5 bar | FKM | 5.777,80 lei | ||
RV17-20-50-2/12
Specifications
|
G 2" | 50 mm | 2...12 bar | FKM | 5.777,80 lei | ||
RV17-20-50-12/20-T
Specifications
|
G 2" | 50 mm | 12...20 bar | PTFE/FKM | 6.354,60 lei |
