Body, Inner parts Brass; Seal FKM; Manual adjusting of discharge pressure (Lock nut); Medium temperature -20…+180°C; Without TÜV-inspection number
Relief valve Series RV01 -
With twist lifting; Body Brass; Compression spring Stainless steel; Seal 0,2...25bar FKM, 25,1...50bar PTFE; Application: Compressed air, Non-toxic and non-inflammable gases, which are allowed to flow freely; Medium temperature -20…+200°C; Possible set pressures 0,2...50bar In steps of 0,1 bar
Safety valve Series SV01 -
With twist lifting; Body Brass; Compression spring Stainless steel; Seal FKM; Application: Compressed air, Non-toxic and non-inflammable gases, which are allowed to flow freely; Medium temperature -20…+200°C; Possible set pressures In steps of 0,1 bar
Safety valve Series SV02 -
With twist lifting; Body Bronze; Seal NBR; Application: Compressed air, Non-toxic gases, vapors; Medium temperature -30…+130°C; Possible set pressures 1...16bar In steps of 0,1 bar
Safety valve Series SV03 -
With twist lifting; Body Bronze; Seal NBR; Application: Water, Neutral liquids; Medium temperature -30…+130°C; Possible set pressures 1...16bar In steps of 0,1 bar
Safety valve Series SV04 -
With twist lifting; Body Bronze; Seal NBR; Application: Compressed air, Non-toxic gases, vapors; Medium temperature -30…+130°C; Possible set pressures 0,5...25bar In steps of 0,1 bar
Safety valve, full stroke Series SF01 -
With twist lifting; Body Bronze; Seal PTFE; Application: Compressed air, Gases and steams; Medium temperature -60...225°C; Possible set pressures 0,5...25bar In steps of 0,1 bar
Safety valve, full stroke Series SF01-T -
With twist lifting; With bronze-bellow; Body Bronze; Seal EPDM; Application: Toxic, flammable gases; Medium temperature -40…+170°C; Possible set pressures 0,5...25bar In steps of 0,1 bar
Safety valve, full stroke Series SF04 -
With twist lifting; Body Bronze; Seal NBR; Application: Neutral liquids; Medium temperature -30…+130°C; Possible set pressures 0,5...25bar In steps of 0,1 bar
Safety valve, full stroke Series SF05 -
With twist lifting; With bronze-bellow; Body Bronze; Seal EPDM; Application: Toxic, flammable liquids; Medium temperature -40…+170°C; Possible set pressures 0,5...25bar In steps of 0,1 bar
Safety valve, full stroke Series SF06 -
Oil- and gas-proof cover; Body Bronze; Without TÜV-inspection number
Relief valve Series RV05 -
Oil- and gas-proof cover; Body Bronze; Without TÜV-inspection number; Fixed and sealed
Relief valve Series RV05 -
Oil- and gas-proof cover; Body Bronze; Without TÜV-inspection number
Relief valve Series RV02-T -
Oil- and gas-proof cover; Body Bronze; Without TÜV-inspection number; Fixed and sealed
Relief valve Series RV02-T -
Oil- and gas-proof cover; Body 1.4408; Without TÜV-inspection number
Relief valve Series RV17 -
Body 1.4571; Cap Ductile iron EN-GJS-400-15; Metal sealing; Gas-proof cover; Medium temperature -10…+280°C; Without TÜV-inspection number; Possible set pressures In steps of 0,1 bar
Relief valve Series RV06 -
Body 1.4571; Cap Ductile iron EN-GJS-400-15; Metal sealing; Gas-proof cover; Medium temperature -10…+280°C; Possible set pressures In steps of 0,1 bar
Safety valve Series SV05 -
Body 1.4571; Cap 1.4581; Metal sealing; Gas-proof cover; Medium temperature -60…+280°C; Without TÜV-inspection number; Possible set pressures In steps of 0,1 bar
Relief valve Series RV07 -
Body 1.4571; Cap 1.4581; Metal sealing; Gas-proof cover; Medium temperature -60…+280°C; Possible set pressures In steps of 0,1 bar
Safety valve Series SV06
|

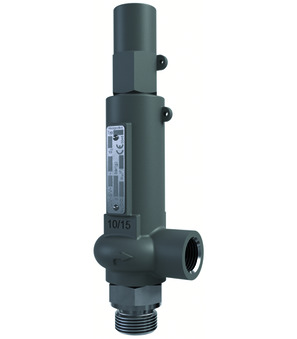

Relief valve Series RV07Body 1.4571; Cap 1.4581; Metal sealing; Gas-proof cover; Medium temperature -60…+280°C; Without TÜV-inspection number; Possible set pressures In steps of 0,1 bar
|
| Male thread | Female thread | DN | Possible set pressures | Discharge capacity at 6bar(g) water | Brand | Type | Sequence |
|---|---|---|---|---|---|---|---|
| G 3/8" | G 1/2" | 8 mm | 0,2...250 bar | 0,49 m3/h | STASTO | RV07-38W-8-X | 33810009 |
| G 1/2" | G 1/2" | 12,5 mm | 0,12...155 bar | 0,76 m3/h | STASTO | RV07-12-12,5-X | 33810010 |
| G 3/4" | G 1" | 16 mm | 0,1...130 bar | 1,25 m3/h | STASTO | RV07-34W1-16-X | 33810011 |
| G 1" | G 1" | 16 mm | 0,1...130 bar | 1,25 m3/h | STASTO | RV07-10-16-X | 33810012 |
| G 1 1/4" | G 1" | 22 mm | 0,07...75 bar | 2,37 m3/h | STASTO | RV07-114R-22-X | 33810013 |
| G 1 1/2" | G 1" | 27 mm | 0,05...45 bar | 3,56 m3/h | STASTO | RV07-112R-27-X | 33810014 |
| G 2" | G 1" | 27 mm | 0,05...45 bar | 3,56 m3/h | STASTO | RV07-20R-27-X | 33810015 |
