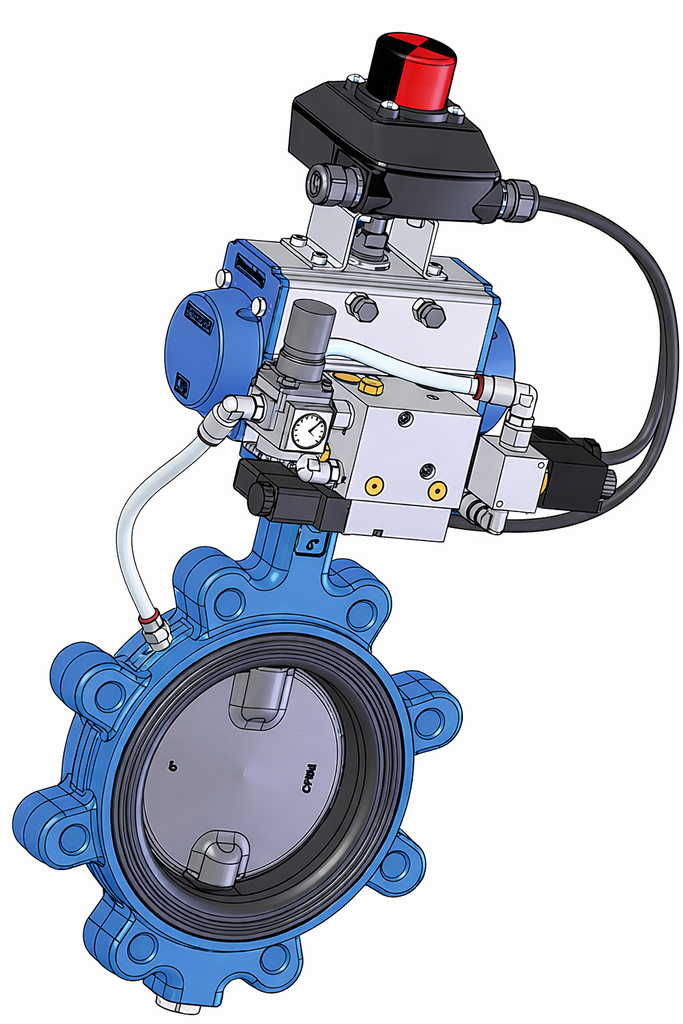

BUWI2-350-DSN-D32-01
Butterfly valve with control unit; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc AISI 316; Shaft AISI 430; Liner inflatable NBR; Medium temperature -25...+100°C; DN 350mm; Length 78mm; Pressure range 0…6bar; Flange PN10/16/ANSI150; Voltage 24VDC
Intrastat No.: 84818085
Country of origin: Italy
Short Itemnumber: BUWI2350DSND3201
Country of origin: Italy
Short Itemnumber: BUWI2350DSND3201
Butterfly valve with control unit; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc AISI 316; Shaft AISI 430; Liner inflatable NBR; Medium temperature -25...+100°C; DN 350mm; Length 78mm; Pressure range 0…6bar; Flange PN10/16/ANSI150; Voltage 24VDC
| dimension | |
|---|---|
| DN | 350 mm |
| Length | 78 mm |
| Flange | PN10/16, ANSI150 |
| pressure | |
| Pressure range | 0...10 bar |
No spare parts are available for this product.
