BUW9-350-CSIQ-G

BUW9-350-CSIQ-G

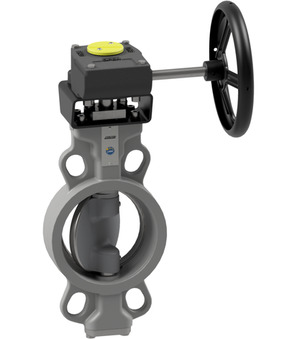

Butterfly valve with manual gear box; Wafer type; Length According to EN558−1 R20; Body Steel Epoxy coated; Disc 1.4408, Shaft 1.4542; Seat Inconel 625; Nominal flange pressure PN10/16/25/ANSI150; Medium temperature -10...+425°C; Pressure range 0...25bar; DN 350mm; Length 92mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 105.044 Kg
Short Itemnumber: BUW9350CSIQG
https://www.stasto.ro/web/image/product.template/151316/image_1920?unique=24fee4a

butterfly valve with manual gear box; wafer type; length according to EN558−1 R20; body steel epoxy coated; disc AISI 316, shaft AISI 630; seat Inconel 625; nominal flange pressure PN10/16/25/ANSI150; medium temperature -10...+425°C; pressure range 0...25bar; DN 350mm; length 92mm

46.355,40 lei 46355.4 RON 46.355,40 lei

Not Available For Sale

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    BUW9-350-CSIQ-B x 1.0
    BUW9-350-CSIQ-B
    Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body Steel Epoxy coated; Disc 1.4408, Shaft 1.4542; Seat Inconel 625; Nominal flange pressure PN10/16/25/ANSI150; Medium temperature -10...+425°C; Pressure range 0...25bar; DN 350mm; Length 92mm
    Add to Cart
    GB02-14/4012-01
    GB02-14/4012-01 x 1.0
    GB02-14/4012-01
    Gear box; Body Cast iron; Protection class IP67; ATEX Area 1/21; Torque 3250Nm; Flange ISO5211 F14; Diameter/Key 40/12mm
