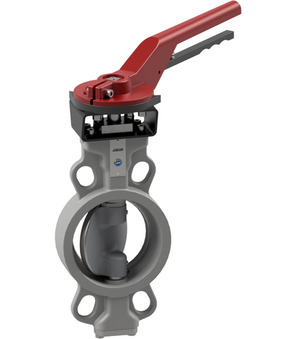

Butterfly valve with hand lever BUW9-150-SSRS-L

Butterfly valve with hand lever BUW9-150-SSRS-L

Butterfly valve with hand lever Series BUW9-SSRS-L; Wafer type; Double eccentric; Length According to EN558−1R20; Body And Disc 1.4408, Shaft 1.4542; Seat RTFE; Nominal flange pressure PN10/16/25/ANSI150; Medium temperature -10...+230°C; Pressure range 0...25bar; DN 150mm; Length 56mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 4.5 Kg
Short Itemnumber: BUW9150SSRSL

Scope of delivery

butterfly valve with hand lever made of aluminum, 10 positions
https://www.stasto.ro/web/image/product.template/150534/image_1920?unique=3b396ba

butterfly valve with hand lever series BUW9-SSRS-L; wafer type; double eccentric; length according to EN558−1R20; body and disc AISI 316, shaft AISI 630; seat RTFE; nominal flange pressure PN10/16/25/ANSI150; medium temperature -10...+230°C; pressure range 0...25bar; DN 150mm; length 56mm

10.093,40 lei 10093.4 RON 10.093,40 lei

Not Available For Sale

excl. tax
  • DN
  • Length

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...25bar
DN 150 mm
Length 56 mm
Documents
Data sheets, drawings and CAD files
Pressure range 0...25bar
DN 150 mm
Length 56 mm

BUW9-150-SSRS-L

Documents

1 Documents 6 Languages

Czech / Čeština
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
BUW9-150-SSRS-B x 1.0 Pcs
Butterfly valve with bare shaft BUW9-150-SSRS-B
Butterfly valve with bare shaft Series BUW-SSRS-B; Wafer type; Double eccentric; Length According to EN558−1R20; Body, Disc 1.4408; Shaft 1.4542; Seat RTFE; Medium temperature -55...+230°C; Pressure range 0...25bar; DN 150mm; Length 56mm; Nominal flange pressure PN10/16/25/ANSI150
HLBU-200-A
HLBU-200-A x 1.0 Pcs
HLBU-200-A
Hand lever; Material Aluminum; Suitable for Series BUW6, BUW2, BUW4, BULG, BULC, BULA And BULY; DN 200mm
