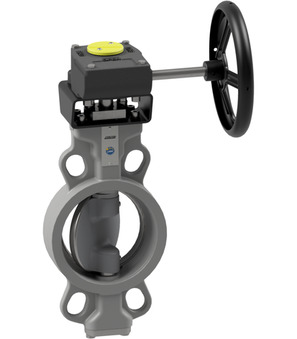

BUW9-150-SSIS-G-01

BUW9-150-SSIS-G-01

butterfly valve with manual gear box series BUW-SSIS-G-01; wafer type; double eccentric; length according to EN558−1R20; housing, disc AISI 316; shaft AISI 630; seat Inconel 625; medium temperature -10...+425°C; pressure range 0...16bar; DN 150mm; length 56mm; flange PN10/16/25/ANSI150; stem extension 1m stainless steel

Intrastat No.: 84818085
Country of origin: Italy
Short Itemnumber: BUW9150SSISG01
https://www.stasto.ro/web/image/product.template/177351/image_1920?unique=f96ddcc

butterfly valve with manual gear box series BUW-SSIS-G-01; wafer type; double eccentric; length according to EN558−1R20; housing, disc AISI 316; shaft AISI 630; seat Inconel 625; medium temperature -10...+425°C; pressure range 0...16bar; DN 150mm; length 56mm; flange PN10/16/25/ANSI150; stem extension 1m stainless steel

999.999,00 lei 999999.0 RON 999.999,00 lei

Not Available For Sale

  • DN
  • Length
  • Flange
  • Pressure range

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 150 mm
Length 56 mm
Flange PN10/16/25, ANSI150
pressure
Pressure range 0...25 bar
BUW9-150-SSIS-B-01 x 1.0
Butterfly valve with bare shaft BUW9-150-SSIS-B-01
butterfly valve with bare shaft series BUW9-SSIS-B-01; wafer type; double eccentric; length according to EN558−1R20; housing and disc AISI 316, shaft AISI 630; seat Inconel 625; medium temperature -10...+425°C; pressure range 0...16bar; DN 150mm; length 56mm; nominal flange pressure PN10/16/25/ANSI150; stem extension 1m stainless steel
Add to Cart
GB02-10/17-01
GB02-10/17-01 x 1.0
GB02-10/17-01
Gear box; Body Cast iron; Protection class IP67; ATEX Area 1/21; Torque 500Nm; Flange ISO5211 F10; Female square 17mm
