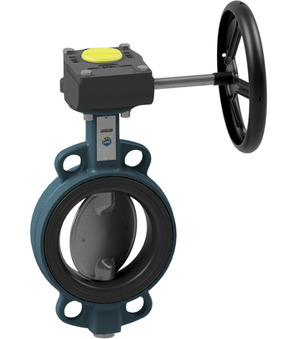

BUW6-450-DSV-G

BUW6-450-DSV-G

butterfly valve with manual gear box; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+200°C; pressure range 0...16bar; DN 450mm; length 114mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 95.544 Kg
Short Itemnumber: BUW6450DSVG
https://www.stasto.ro/web/image/product.template/220228/image_1920?unique=24fee4a

butterfly valve with manual gear box; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+200°C; pressure range 0...16bar; DN 450mm; length 114mm

38.393,80 lei 38393.8 RON 38.393,80 lei

Not Available For Sale

  • DN
  • Length
  • Pressure range

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 450 mm
Length 114 mm
pressure
Pressure range 0...16 bar
BUW6-450-DSV-B x 1.0
Butterfly valve with bare shaft BUW6-450-DSV-B
butterfly valve with bare shaft series BUW6-DSV-B; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; medium temperature -10...+200°C; DN 450mm; length 114mm; pressure range 0…16bar; flange PN10/16/ANSI150
Add to Cart
GB02-14/4512-01
GB02-14/4512-01 x 1.0
GB02-14/4512-01
Gear box; Body Cast iron; Protection class IP67; ATEX Area 1/21; Torque 2000Nm; Flange ISO5211 F14; Diameter/Key 45/12mm
Add to Cart
